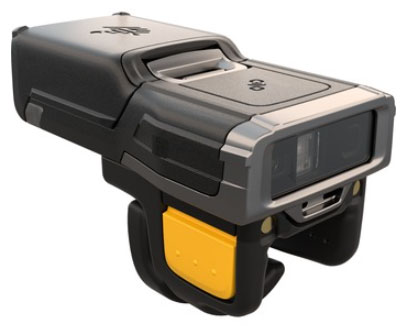

Zebra RS6100 – Barcode Scanner – Scanner Only

Part Number: RS61B0-KBENZWR
Model: RS6100
to get Free Ground Shipping on your order.
3-year Premium Plus ($437.96)
3-year Premium ($383.26)
No Support
Add to My Shopping List Add to Compare
$1,161.47
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
Supported 1D Symbologies: Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)Supported 2D Symbologies: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal CodesSupported OCR Symbologies: OCR-A, OCR-B
Light Source
LED

Product Description:

  Wearables, Zebra RS6100, Wearable Scanner, SE55, Standard Battery, Enterprise Hand Mount, 0oC to +50oC Operation, Worldwide, Includes Mounting Frame and Trigger, Requires Purchase of Hand Wrap
Explore all Zebra RS6100 Barcode Scanners
Add to Quote
Zebra RS61B0-KBENZWR Barcode Scanner
Zebra RS61B0-KBENZWR Barcode Scanner
Zebra RS61B0-KBENZWR Barcode Scanner
Zebra RS61B0-KBENZWR Barcode Scanner
Zebra RS61B0-KBENZWR Barcode Scanner
Zebra RS61B0-KBENZWR Barcode Scanner Zebra RS61B0-KBENZWR Barcode Scanner Zebra RS61B0-KBENZWR Barcode Scanner Zebra RS61B0-KBENZWR Barcode Scanner Zebra RS61B0-KBENZWR Barcode Scanner
Full specifications (PDF)

Zebra RS6100 Barcode Scanner Model Overview

The RS6100 Bluetooth Wearable Scanner by Zebra is your ultimate solution for maximizing productivity in demanding environments. This lightweight and compact device, weighing just over two ounces, features an advanced multi-focus scan engine that captures 1D and 2D barcodes from as far as 40 ft. away, regardless of conditions. With five interchangeable wearing styles, it enhances user comfort and efficiency, whether in freezers, warehouses, or on loading docks. The removable battery design ensures minimized downtime, letting you swap batteries seamlessly for continuous operations.


Key Features
  • Maximum Versatility: Choose between cordless and corded operation.
  • Exceptional Scanning Range: Capture barcodes from 2 in. to 40 ft.
  • Durability: IP65 rated, withstands harsh conditions and multiple drops.
  • Instant Pairing: NFC technology for quick setup.
  • Custom Comfort: Five different wearing styles to suit user preferences.
  • Advanced Battery Management: Removable and replaceable batteries to reduce downtime.

Specifications
  • Dimensions: 2.62 in. L x 1.29 in. W x 0.83 in. D
  • Weight: 2.47 oz. with standard battery
  • Scanning Engine: SE55 1D/2D Advanced Range with IntelliFocus™
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Battery: 480 mAh standard; 735 mAh extended
  • Sealing: IP65 rated for water and dust resistance
  • Drop Specification: Multiple 6 ft./1.8 m drops to concrete
  • Bluetooth Technology: Class 1 and 2, Bluetooth v5.2
  • Supported 1D & 2D Symbologies: Various common formats including QR Codes and UPC
  • Warranty: 1-year limited warranty against defects
Zebra RS61B0-KBENZWR Barcode Scanner Overview

Introducing Zebra's most powerful and versatile wearable scanner-the RS6100. This small and practically weightless wearable scanner is less than half the size and weight of its predecessor, the RS6000. An advanced multi-focus scan engine captures 1D and 2D barcodes at close range and on the top shelf of a rack 40 ft./12.2 m away, regardless of condition-scratched, dirty, poorly printed, under shrinkwrap and more. With five interchangeable wearing options, there's a style that will maximize comfort for every user. Use it anywhere-from warehouse aisles, freezers and coolers to the seat of a fork truck and out on the dock in rain, snow, blazing summer heat or subzero winter cold. The RS6100 is always in service with its removable battery-no downtime needed for charging, just swap in a fully charged battery. Choose cordless freedom with two battery options or corded battery-free operation. And since the RS6100 and RS5100 share common trigger assemblies, batteries and mounts, upgrading from the RS5100 is easy and cost-effective.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

Supported 1D Symbologies:

  • Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)

Supported 2D Symbologies:

  • PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes

Supported OCR Symbologies:

  • OCR-A, OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
Area
Features:
  • Vibration
  • Beep
  • Notification LED
Field of View (Horizontal):
37°
Field of View (Vertical):
21°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Maximum Ambient Light:
107639 lux
Drop Specification:

Multiple 6 ft./1.8 m drops to concrete over the operating temperature range

Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
100 mil
Minimum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (DataMatrix):
100 mil
Minimum Element Resolution (PDF417):
5 mil
Maximum Element Resolution (PDF417):
6.7 mil
Image Sensor Resolution:
2688 x 1520
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
15kV
Contact Electrostatic Discharge (+/-):
8kV
Network & Communication
Bluetooth:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
480 mAh
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Wearable
Rugged:
Yes
Width:
1.3"
Depth:
0.8"
Length:
2.6"
Weight (Approximate):
4 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Manufacturing
  • Warehouse
  • Transportation
  • Logistics
  • Retail
  • Sorting
  • Picking
  • Inventory
  • Assembly Line
Item Numbers
UNSPSC: 43211701
