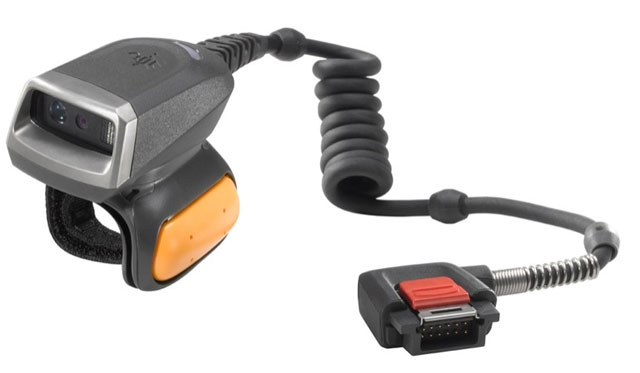

Zebra RS5000-LCFSWR Barcode Scanner

Zebra RS5000 - Ring Scanner, 2D Imager, Zebra EVM, RS5000, Corded, Compatible with WT6000 Wearable Terminal, Short Cable Compatible with Wrist, Worldwide
  • Perfect for applications that require direct association with a workstation or a notebook
  • Scan barcodes with a staggering speed of 116 scan/s
Read More
$837.76
In Stock:
Ships Same Day
Why don't we show the price?

Full specifications (PDF)

Cost-Effective Hands-Free 1D/2D Scanning
Zebra's RS5000 single-finger rugged 1D/2D ring scanner is the easy, cost-effective way to improve the productivity of your WT6000 and WT41N0 Zebra wearable computer users. With hands-free scanning of virtually any barcode in any condition, the RS5000 has what it takes to reduce cycle times and improve task accuracy, increasing throughput in your operations. You get the rugged design you need to maximize return on investment in your challenging warehouse and manufacturing environments - it's dust-proof, spray-proof, ready for the freezer and built to handle the inevitable drops and bumps. When it comes to scanning, PRZM Intelligent Imaging, a wide working range and a wide field of view allow workers to capture barcodes faster than ever. The RS5000's wide field of view allows workers to easily capture the large barcodes often found in warehouses and manufacturing plants. The RS5000's quick-swivel trigger allows workers to switch between right and left-handed operation on-the-fly for maximum comfort, even on the most scan intensive days.
Zebra RS5000-LCFSWR Overview
MAXIMISE WORKER PRODUCTIVITY AND THE VALUE OF YOUR ZEBRA WEARABLE COMPUTERS WITH THE RS5000

The RS5000 ring scanner is designed for challenging warehouse and manufacturing environments. Designed for subzero environments, it can be used in your warehouse aisles and in the freezer. It can withstand a 4 ft./1.2 m drop across the entire operating temperature range - a must for freezer use. Even after 1,000 consecutive bumps, the RS5000 delivers reliable operation. And with its IP65 sealing, this rugged scanner is dust-proof and spray-proof.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D:
  • Code 39
  • Code 128
  • Code 93
  • Codebar/NW7
  • Code 11
  • MSI
  • UPC/EAN
  • I 2of 5
  • Korean 3 of 5
  • GSI DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
Scan Engine Model:
SE4710
Image Sensor Type:
Imager
Scan Rate:
116 scan/s
Scan Pattern:
Omni-directional
Scanner Range:
Standard Range
Scanning Distance:
25"
Cable Type Included:
USB
Field of View (Horizontal):
42°
Field of View (Vertical):
28°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Maximum Ambient Light:
96900 lux
Drop Specification:

Multiple 4 ft. /1.2 m drops to concrete over the operating temperature range

Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
20 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
5 mil
Physical Characteristics
Form Factor:
Wearable
Rugged:
Yes
Color:
Dark Gray
Width:
1.3"
Depth:
1.1"
Length:
2"
Weight (Approximate):
2.68 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Industrial
  • Manufacturing
  • Retail
  • Transportation
  • Warehouse
Item Numbers
UNSPSC: 43211701
