Full specifications (PDF)
Processor Type:
Core i5
Zebra RPL10-LXV5W1W1S0X3X0 Tablet
Part Number:
RPL10-LXV5W1W1S0X3X0
Model:
L10
Zebra L10 Tablet Model Overview
The L10 Android Rugged Tablet family by Zebra is engineered to excel in demanding environments, from construction sites to military applications. With three versatile models—XPAD, XBOOK, and XSLATE—these tablets empower workers with robust performance, extended battery life, and seamless connectivity. The 10.1-inch display remains usable in various conditions, ensuring data capture is efficient whether in rain, snow, or direct sunlight. With an advanced Android operating system and enterprise-level features, the L10 is the ultimate companion for professionals seeking reliability and functionality.
Key Features:
- Rugged Design: Waterproof, dustproof, and drop-proof for harsh environments.
- Multiple Models: XPAD, and XSLATE adapt to different work requirements.
- Powerful Performance: 8-core processor with up to 26 hours of battery life.
- Multi-Touch Display: Operable with gloves in varying light conditions.
- Enhanced Connectivity: WiFi, Bluetooth 5.0, and 4G LTE for global communication.
Specifications:
- Dimensions: XSLATE: 11in x 7.7in x 0.88in; XPAD: 11in x 10in x 0.88in; XBOOK: 11in x 8.2in x 2.5in.
- Weight: XSLATE: 2.7 lbs; XPAD: 3.0 lbs; XBOOK: 4.4 lbs.
- Display: 10.1 in. 2K resolution, 500 Nit (up to 1000 Nit optional).
- Operating Temperature: -4°F to 140°F.
- Battery: Standard: 36 WHr (up to 9.8 hours); Extended: 98 WHr (up to 26 hours).
- Camera: 13MP rear; 5MP front.
- Storage: Up to 128GB eMMC with 4GB/8GB RAM options.
- Wireless Connectivity: Dual Nano SIM, WiFi 802.11 a/b/g/n/ac.
Zebra RPL10-LXV5W1W1S0X3X0 Tablet Overview

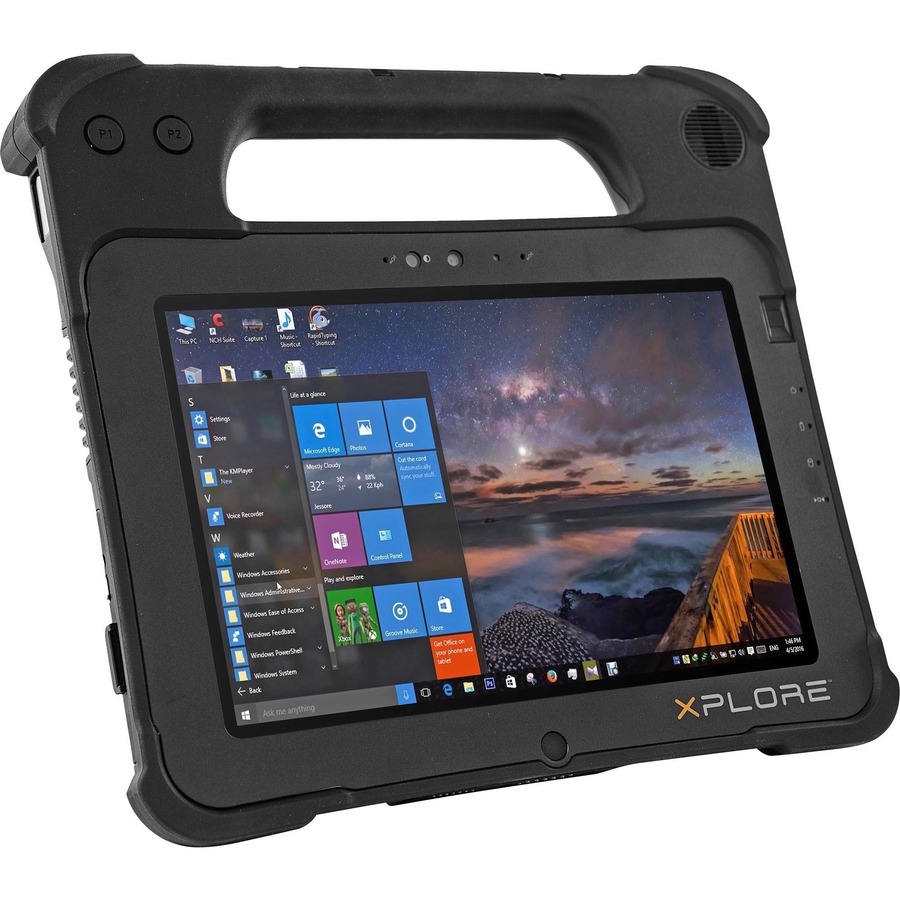

The 10.1" XPAD L10 Hard-Handle Rugged Tablet is Perfect for Those Who Work on Their Feet All Day
While the Xplore XPAD L10 Rugged Tablet computer may be best recognized for its ergonomic hard handle, it is also known for its field-proven, industrial-grade durability - especially among those in field service and industrial sectors who spend their days walking and working. Xplore has applied more than 20 years of rugged engineering expertise to perfect the balanced design - and improve the user handling - of this ergonomic rugged tablet form factor. We have also integrated the most advanced rugged computing technology available today to ensure the XPAD L10 exceeds your performance expectations for years to come.
Incredible, lightweight strength
It is waterproof and dustproof, C1D2 certified for safe use in Hazardous Locations, and MIL-STD-810G rated for 6 ft drops. This ergonomic tablet will also operate in both the freezing cold (-20 C / -4F) and extreme heat (60 C / 140 F) without issue, and it can handle constant vibration, humidity, and exposure to oils, grease, and other common on-the-job hazards.
Processor
Memory
Standard Memory:
8 GB
Memory Technology:
LPDDR3
Memory Card Supported:
microSDXC
Storage
Solid State Drive Capacity:
128 GB
Display & Graphics
Screen Size:
10.1"
Display Screen Technology:
View Anywhere
Aspect Ratio:
16:10
Screen Resolution:
1920 x 1200
Graphics Memory Technology:
LPDDR3
Graphics Memory Accessibility:
Shared
Network & Communication
WWAN Supported:
Yes
Wireless Connectivity Technology:
Wi-Fi
GPS:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11ac
Bluetooth:
Yes

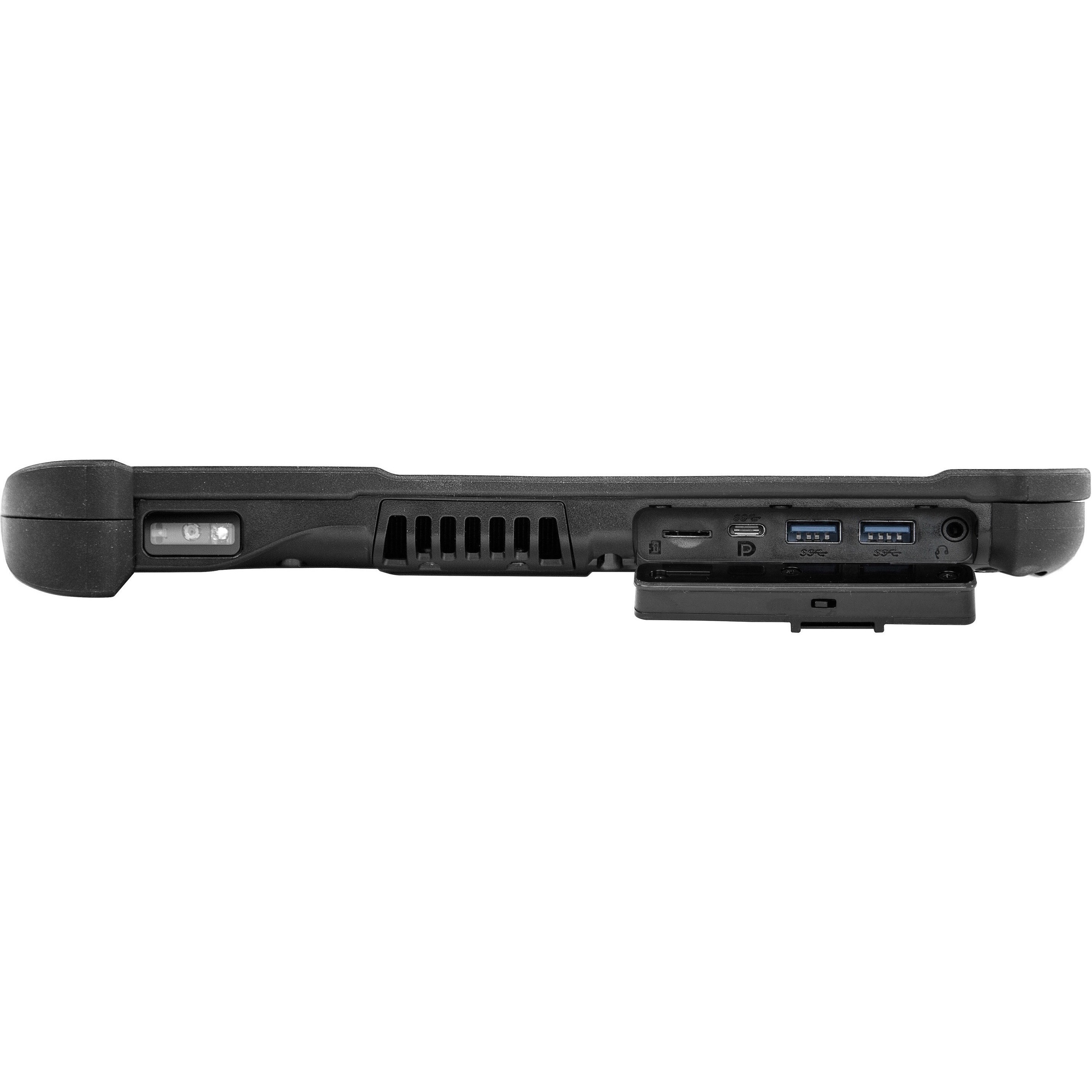

Interfaces/Ports
Number of USB 3.0 Ports:
2
USB Type-C:
Yes
USB Type-C Detail:
USB type C port (USB 2.0, USB 3.0, Display Port out)
Built-in Devices
Front Camera:
Yes
Front Camera Resolution:
2 Megapixel
Rear Camera:
Yes
Rear Camera Resolution:
13 Megapixel
Operating System
Operating System Platform:
Windows
Operating System:
Windows 10 Pro
Operating System Architecture:
64-bit
Physical Characteristics
Form Factor:
Slate
Height:
0.9"
Width:
11.1"
Depth:
10.1"
Weight (Approximate):
3.10 lb
Miscellaneous
Package Contents:
- XPAD L10 Tablet
- External Standard Battery
- AC Adapter
Features:
- Water Resistant
- Gorilla Glass 3
- RFID Reader
Energy Star:
Yes
Country of Origin:
Taiwan
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS) 2
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
12 Month
Item Numbers
UNSPSC:
43211509
