Zebra R70-7A1-00200 RFID Printer

The Zebra R70-7A1-00200 RFID Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra R170xi - Thermal transfer & direct thermal, RFID, 300 dpi, ZebraNet 10/100 PrintServer Interface, US Power Supply, 16MB SDRAM, Rewinder, Clear Media Side Door and Media Hanger
  • Direct Thermal/Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Ideal for retail tagging, manufacturing as well as healthcare tracking
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 7.10" maximum label width for dependable, desired results
  • 39" maximum label length for dependable, desired results
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 16 MB standard memory for timely printing with added reliability
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

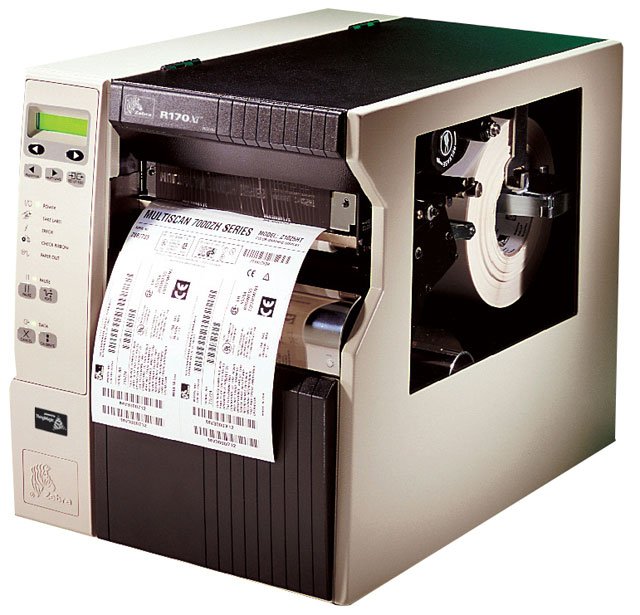

Zebra R170xi RFID Printer Model Overview
Built on the solid, tested Xi III Plus platform, the Zebra R170xi printer/encoder offers an unprecedented level of on-demand printing flexibility in tag placement and label size (6-inch) as well as unique features such as XML encoding for a seamless integration into enterprise systems, automatic inlay position calibration, program positioning, multiple power levels for precisely encoding small labels, and statistics tracking, which allows customers to track the number of good and unusable labels. For companies looking to comply with RFID mandates, the R170xi provides a robust and flexible solution with key advantages offering investment protection, efficiency and productivity.
Zebra R70-7A1-00200 RFID Printer Overview

Built on the solid, tested XiIIIPlus platform, the R170Xi for six-inch labels offers an unprecedented level of on-demand printing flexibility in tag placement as well as unique features such as XML for seamless integration into enterprise systems, automatic calibration, flexible inlay positioning, multiple power levels, statistics tracking, easier RFID programming and more detailed information through the front panel display.

Technical Information
Recommended Use:
RFID Label Print
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
Rewinder:
Yes
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
RFID
Minimum Operating Frequency:
868 MHz
Maximum Operating Frequency:
956 MHz
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
RFID:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
7.10"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
13.2"
Depth:
19.5"
Miscellaneous
Package Contents:
  • R170Xi RFID Printer
  • User Guide
  • Accessories CD
  • 120V AC North American Edition Power Cord
Cables Included:
AC
Additional Information:
  • 300 unique darkness settings
  • Advanced media/ribbon counter
  • North American Edition, 120 VAC Cord
  • Clear Media Side Door and Media Hanger
  • Transmissive and Reflective media sensors
  • Enhanced Alert notification - monitors printhead condition
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Platform Supported:
PC
Certifications & Standards:
Quadrifoglio Sistemi d'Arredo S.p.A
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra R70-7A1-00200 RFID Printer is also known as ZEB-R707A100200 or R70-7A1-00200.
