Zebra R4P-7UBA0000-00 Portable Barcode Printer

Part Number: R4P-7UBA0000-00
Model: RW 420

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Mobile
Print Resolution
203 dpi

Product Description:

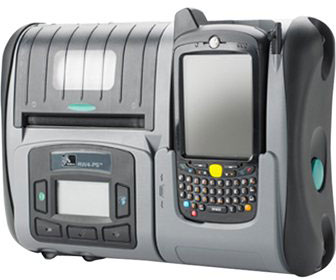

  Print Station (with DEX and Bluetooth) for the RW 420

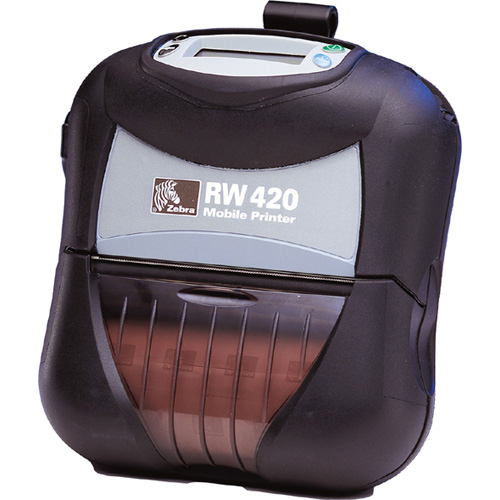

Zebra RW 420 Portable Barcode Printer Model Overview

Boost the efficiency and productivity of your mobile workforce with our compact, lightweight and rugged RW 420 Print Station perfect for your route accounting, direct store delivery, field service/sales, or electronic citation operations. Mobile workers can easily carry the streamlined RW 420 Print Station via shoulder or hand strap to customer visits where they can rest the unit on their arm to enter data, conduct transactions via the optional magnetic stripe card reader, and print receipts and other documents. They'll carry less, do more!
Zebra R4P-7UBA0000-00 Portable Barcode Printer Overview

Enhance mobile workforce efficiency with Zebra's price competitive RW 420 Print Station. Compact, lightweight and rugged, the single unit includes an integrated, easy to use RW 420 mobile printer; can house a removable Motorola MC70 or MC75 mobile computer; and enables both printer and handheld terminal to be charged at once via a single source, so there's no need to purchase separate battery chargers.

Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Codabar
  • Code 128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • FIM
  • Interleaved 2 of 5
  • MSI
  • Plessey
  • POSTNET
  • UCC/EAN 128
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • GS1 DataBar
  • UPC-A
  • UPC-E
  • EAN-14
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
Features:
  • Vertical Printing
  • Horizontal Printing
  • Tear Bar
Print Technology:
Direct Thermal
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Bluetooth:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Receipt
  • Continuous Receipt
  • Gap
  • Tag
Media Sensor:
  • Media Door Open Sensor
  • Out Of Paper Sensor
Media Thickness:
6.30 mil
Maximum Roll Diameter:
2.25"
Maximum Label Width:
4.37"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • CPCL
  • EPL
  • XML
  • ZPL
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Rechargeable:
Yes
Battery Capacity:
4000 mAh
Physical Characteristics
Form Factor:
Portable
Height:
7.6"
Width:
11.1"
Depth:
2.8"
Miscellaneous
Platform Supported:
PC
Item Numbers
GTIN: 0783555108390, 3609740036705
UPC: 783555108390
EAN: 0783555108390, 3609740036705
UNSPSC: 45101512
