Zebra R4P-6UBA0000-00 Portable Barcode Printer

A newer version of this item is available.
It is replaced by the Zebra ZQ52-AUE0000-00 Portable Barcode Printer.

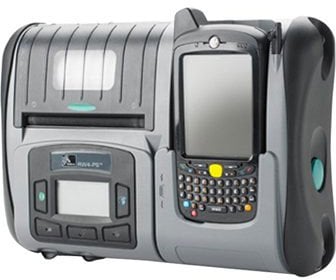

Zebra RW 420 Print Station - RW4 PRINT STATION BLTH MC55/65

Direct Thermal Printer for maximum label/receipt printing usability and feasibility
200 maximum print resolution (dpi) for better reliance and added usability
Produce high-quality documents with this monochrome printer to increase your productivity
Ideal for point-of-sale transactions for quick receipt printing
Bring convenience, value, and feature to any mobile environment
4.37" maximum label width for your convenience and feasible usability
Supports receipt media type for dependable, efficient results with maximum productivity
Dex Port feature for better reliance and usability
Comes with 16 MB standard memory to ensure maximum efficiency with great quality printing results
LCD display is brighter with added efficiency, thinner, and feature better refresh rates

Need a different version? See all Zebra RW 420 Portable Barcode Printers

Discontinued See Replacement

Add to Quote

Zebra R4P-6UBA0000-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra RW 420 Portable Barcode Printer Model Overview

Boost the efficiency and productivity of your mobile workforce with our compact, lightweight and rugged RW 420 Print Station perfect for your route accounting, direct store delivery, field service/sales, or electronic citation operations. Mobile workers can easily carry the streamlined RW 420 Print Station via shoulder or hand strap to customer visits where they can rest the unit on their arm to enter data, conduct transactions via the optional magnetic stripe card reader, and print receipts and other documents. They'll carry less, do more!

Zebra R4P-6UBA0000-00 Portable Barcode Printer Overview

Road Warrior! This rough and-tough receipt and limited-label printer is IP54-rated for harsh environments, and offers LCD for battery/ network status, vehicle cradles for convenient on-the-road operation, and card readers for in-the-field payment processing.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Receipt Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution:

200 dpi

Maximum Print Width:

4.10"

Barcode Symbology Supported:

Codabar
Code 128
Code 39
Code 93
EAN-13
EAN-14
EAN-8
FIM
Interleaved 2 of 5
MSI
Plessey
POSTNET
UCC/EAN 128
Maxi Code
QR Code
PDF-417
RSS
GS1 DataBar
UPC-A
UPC-E
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
Data Matrix
Composite Symbology

Features:

Dex Port
Smart Battery Management
Vertical Printing
Horizontal Printing
Tear Bar

Memory

Standard Memory:

16 MB

Memory Technology:

DRAM

Flash Memory:

8 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Bluetooth:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Receipt
Gap
Tag
Continuous Receipt

Media Sensor:

Media Door Open Sensor
Out Of Paper Sensor

Media Thickness:

6.30 mil

Maximum Roll Diameter:

2.25"

Maximum Label Width:

4.37"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

EPL
ZPL
CPCL

Power Description

Power Source:

Battery

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Rechargeable:

Yes

Physical Characteristics

Form Factor:

Portable

Height:

7.6"

Width:

11.1"

Depth:

2.8"

Weight (Approximate):

3.25 lb

Miscellaneous

Platform Supported:

Item Numbers

GTIN: 0006794385712, 0664995062339, 0783555112625

UPC: 006794385712, 664995062339, 783555112625

EAN: 0006794385712, 0664995062339, 0783555112625

UNSPSC: 45101512

Reviews

Q&A

Questions? Get help from a
Printer Expert!

The Zebra R4P-6UBA0000-00 Portable Barcode Printer is also known as ZEB-R4P-6UBA0000-00 or R4P-6UBA0000-00.
