Zebra R4M01-2001-0100 RFID Printer

The Zebra R4M01-2001-0100 RFID Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra R4M Plus - Thermal transfer & direct thermal, 203 dpi, 4.09" print width, 8MB DRAM, 2MB Flash, serial & parallel interfaces. Order cables separately. See accessories.
Print Resolution
203 dpi
  • Direct Thermal/Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Ideal for retail tagging, manufacturing as well as healthcare tracking
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 39" maximum label length for your convenience and feasible usability
  • Supports continuous form media type for better reliance and maximum usability
  • Comes with 8 MB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra R4M Plus RFID Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra R4M01-2001-0100 RFID Printer
Zebra R4M01-2001-0100 RFID Printer Zebra R4M01-2001-0100 RFID Printer Zebra R4M01-2001-0100 RFID Printer
Zebra R4M01-2001-0100 RFID Printer
Zebra R4M01-2001-0100 RFID Printer

Full specifications (PDF)

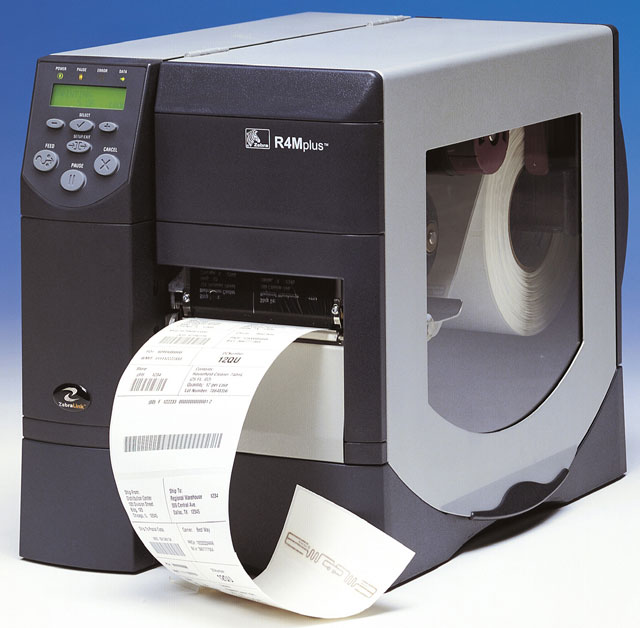

Zebra R4M Plus RFID Printer Model Overview
With its rugged die-cast metal enclosure, the R4M Plus performs dependably in harsh environments such as warehouses, distribution centers, and manufacturing plants. Its durability, along with the data accuracy and tracking efficiency provided by its RFID capabilities, make the R4M Plus ideal for a variety of applications.
Zebra R4M01-2001-0100 RFID Printer Overview

The R4Mplus offers global companies a cost-effective and dependable performer to help meet RFID compliance initiatives. With die-cast metal construction, centralized printer/encoder management. R4Mplus is designed for use in a wide range of manufacturing and supply chain applications, including logistics, shipping and receiving, and distribution. The R4Mplus is also ideal for RFID printer/encoder applications in health care and life sciences, express parcel, entertainment, and asset management.

Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • RSS
  • ISBT-128
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF-417
Memory
Standard Memory:
8 MB
Memory Technology:
DRAM
Flash Memory:
2 MB
RFID
Minimum Operating Frequency:
908 MHz
Maximum Operating Frequency:
928 MHz
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
RFID:
Yes
Media Types & Handling
Media Type:
  • Continuous Form
  • Fanfold
  • Die-cut Label
  • Notched
  • Tag Stock
  • Perforated Label
Media Sensor:
Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13.3"
Width:
10.9"
Depth:
18.7"
Miscellaneous
Package Contents:
  • R4Mplus RFID Printer
  • Power Cord With US Plug
  • Documentation
Cables Included:
AC
Additional Information:
  • Auto Calibration
  • Real Time Clock
  • Color Coded Operator Cues
  • Transmissive Media Sensor
  • EPC Class 1 Reader/Encoder
  • Zebra's E3 Print head Energy Control
  • Metal media cover with large clear window
  • Memory Socket Board: Compact Flash and PCMCIA Memory cards
Platform Supported:
PC
Certifications & Standards:
Quadrifoglio Sistemi d'Arredo S.p.A
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra R4M01-2001-0100 RFID Printer is also known as ZEB-R4M0120010100 or R4M0120010100.
