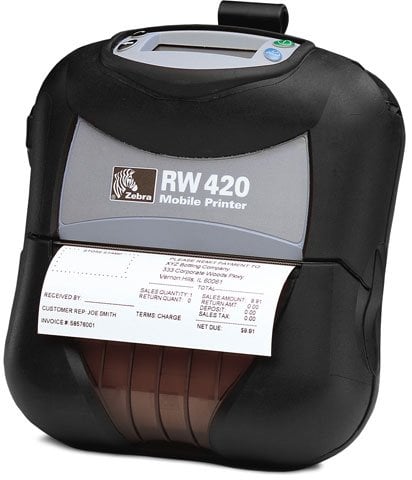

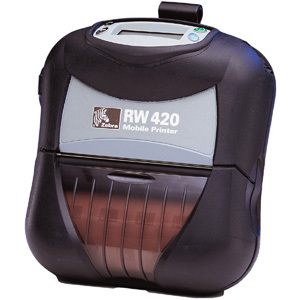

Zebra R4D-0UKA000N-00 Portable Barcode Printer

A newer version of this item is available.
It is replaced by the Zebra ZQ52-AUN0100-00 Portable Barcode Printer.

Zebra RW 420 - Mobile Printer (LCD, 8MB/16MB and 802.11b-g). Power supply (Part# AT17696-1) not included, see accessories.

Printer Type

Mobile

Printing Technology

Direct Thermal

Print Resolution

203 dpi

Max Print Width

4 inch

A smart and inexpensive solution to print temporary documents
203 maximum print resolution (dpi) for better reliance and added usability
Produce high-quality documents with this monochrome printer to increase your productivity
Delivers high-speed, hassle-free labeling solution for your business needs
Portable form factor ensures maximum comfort and pain, fatigue-free usage
4.12" maximum label width for dependable, desired results
Supports receipt media type for better reliance and maximum usability
Belt Clip feature for better reliance and usability
Comes with 16 MB standard memory for timely printing with added reliability

Need a different version? See all Zebra RW 420 Portable Barcode Printers

Discontinued See Replacement

Add to Quote

Zebra R4D-0UKA000N-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra RW 420 Portable Barcode Printer Model Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!

Zebra R4D-0UKA000N-00 Portable Barcode Printer Overview

Designed for the road warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to easy use while on the go. As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW 420 can withstand the harsh demands of a number of Route Accounting and Field Service printing applications, including invoices, delivery receipts, service estimates, sales orders, and inventory management.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
UPC-A
UPC-E
EAN-8
EAN-13
EAN-14
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
Plessey
FIM
POSTNET
Interleaved 2 of 5
MSI
Codabar
PDF-417
Data Matrix
Maxi Code
RSS
GS1 DataBar
QR Code

Features:

Belt Clip

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Media Types & Handling

Media Type:

Receipt
Tag
Gap
Continuous Receipt
Continuous Form

Media Sensor:

Transmissive Media Sensor

Media Thickness:

6.30 mil

Maximum Roll Diameter:

2.25"

Maximum Label Width:

4.12"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
ZPL
EPL
XML

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

4000 mAh

Physical Characteristics

Form Factor:

Portable

Height:

6.9"

Width:

6.3"

Depth:

Miscellaneous

Package Contents:

RW 420 Network Thermal Label Printer
Belt Clip
Battery

Additional Information:

Media Sensors: Bar
4 button angled LCD
Resident scalable fonts
Auto detect firmware load
Media Handling : Standard media (with IP54 rating)
Advanced 32 bit architecture for high speed processing
Character Set : US/Canadian English/Latin 1 & 5 (Including Turkish)
Grouping N : (US/Canada/Australia/New Zealand/Mexico/Nicaragua)

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 45101512

Q&A

Questions? Get help from a
Printer Expert!

The Zebra R4D-0UKA000N-00 Portable Barcode Printer is also known as ZEB-R4D-0UKA000N-00 or R4D-0UKA000N-00.
