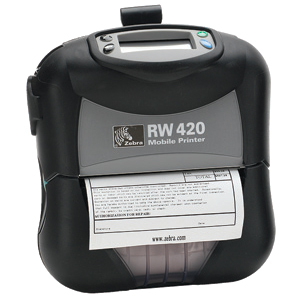

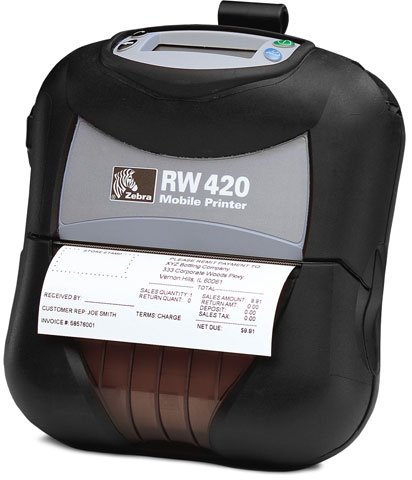

Zebra R4D-0UJA000N-00 Portable Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra RW 420 - Direct thermal Printing, 203 dpi, 4" print width, Bluetooth/Wi-Fi interfaces. Includes belt clip. Charger and interface cables sold separately.
Wireless Mobile Printers Add Versatility to Printing Tasks on the Open Road

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!

Technical Information

  • Maximum Mono Print Speed: 3 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Receipt Print
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • UCC/EAN 128
    • Code 128
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • EAN-14
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • FIM
    • POSTNET
    • Interleaved 2 of 5
    • MSI
    • Codabar
    • PDF-417
    • Data Matrix
    • Maxi Code
    • QR Code
    • GS1 DataBar
    • RSS

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: RW
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: RW420
  • Product Name: RW420 Receipt Printer

Physical Characteristics

  • Height: 6.9"
  • Width: 6.3"
  • Depth: 3"
  • Form Factor: Portable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • RW420 Label Printer
    • Battery
    • Belt Clip
    • RW420 Label Printer
    • Battery
    • Belt Clip
  • Certifications & Standards:
    • IP54
    • FCC Part 15 Class B
    • Canadian ICES-003
    • VCCI
    • NOM/NYCE
    • CE compliance (Class B)
    • C-Tick
    • CSA

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Maximum Label Length: 1.38"
  • Media Type:
    • Receipt
    • Tag
    • Continuous Receipt
    • Continuous Label
    • Linerless
  • Media Thickness: 6.30 mil
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 1.38"
  • Maximum Roll Diameter: 2.25"

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • EPL
    • XML
    • CPCL

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g

Power Description

  • Input Voltage: 7.4 V DC
  • Power Source: Battery

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model RW 420
Max Roll Outer Diameter 2.25
Maximum Print Width 4.00
Print Speed 3
Print Method Direct Thermal
Brand Zebra
Label Core 0.75 inches
Print Resolution 203 dpi
Max Label Width 4.12
Printer Type Mobile
Printer Mobility Mobile
