Zebra R4D-0UGA000N-00 Portable Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

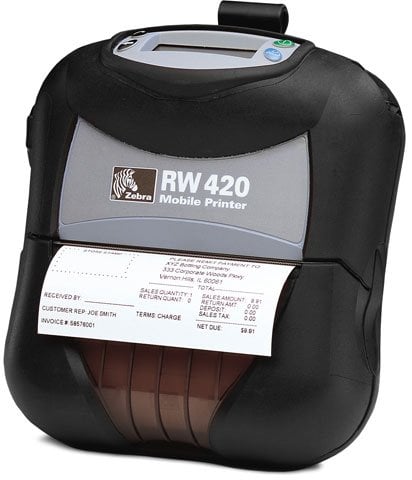

Zebra RW 420 - Direct Thermal mobile printer, 203 dpi, 4" print width, USB/RS-232 interfaces, Wi-Fi (802.11b/g). Includes belt clip. Charger and interface cables sold separately, see accessories.
Wireless Mobile Printers Add Versatility to Printing Tasks on the Open Road

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!

Technical Information

  • Maximum Mono Print Speed: 2.99 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Receipt Print
  • Barcode Symbology Supported:
    • PDF-417
    • Data Matrix
    • Maxi Code
    • RSS
    • GS1 DataBar
    • QR Code
    • Codabar
    • MSI
    • Interleaved 2 of 5
    • POSTNET
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • EAN-8
    • EAN-13
    • EAN-14
    • UPC-A
    • UPC-E
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: RW
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: RW 420
  • Product Name: RW 420 Receipt Printer

Physical Characteristics

  • Height: 6.9"
  • Width: 6.3"
  • Depth: 3"
  • Form Factor: Portable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.13"
  • Media Type:
    • Receipt
    • Tag
    • Gap
    • Continuous Receipt
    • Linerless
    • Direct Thermal Paper
    • Synthetic Media
    • UV Coated Media
    • Label
  • Media Thickness: 6.30 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.37"
  • Maximum Roll Diameter: 2.24"

Other

  • Platform Supported: PC
  • Package Contents:
    • RW 420 Receipt Printer
    • Battery
    • Belt Clip
    • RW 420 Receipt Printer
    • Battery
    • Belt Clip
  • Certifications & Standards:
    • FCC Part 15 Class B
    • Canadian ICES-003
    • VCCI
    • NOM/NYCE
    • CE compliance (Class B)
    • C-Tick
    • CSA

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • ZPL
    • EPL
    • XML

Battery Information

  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g

Power Description

  • Input Voltage: 7.4 V DC
  • Power Source: Battery

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model RW 420
Print Resolution 203 dpi
Max Label Width 4.12
Maximum Print Width 4.00
Print Speed 3
Print Method Direct Thermal
Brand Zebra
Printer Type Mobile
Label Core 0.75 inches
Max Roll Outer Diameter 2.25
Printer Mobility Mobile
