Zebra R4D-0UGA000E-00 Portable Barcode Printer

The Zebra R4D-0UGA000E-00 Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra RW 420 - 4IN, LCD, 8MB/16MB, ZEBRA PERFORMANCE RADIO 802.11 B/G, STANDARD MEDIA IP54 RATING, LINERED PLATEN, EU/EFTA/INDIA/RUSSIA/TURKEY

Printer Type

Mobile

Print Resolution

203 dpi

A smart and inexpensive solution to print temporary documents
203 maximum print resolution (dpi) for your convenience and easy usage
Monochrome print color capability for rich in detail, sharp, and clear printing results
Ideal for point-of-sale transactions for quick receipt printing
Bring convenience, value, and feature to any mobile environment
Enjoy the freedom of wireless connectivity. With Wi-Fi, you will get things done faster.
4.12" maximum label width for dependable, desired results
Supports receipt media type for better reliance and maximum usability
Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
LCD display is brighter with added efficiency, thinner, and feature better refresh rates

Need a different version? See all Zebra RW 420 Portable Barcode Printers

Discontinued Need Assistance?

Add to Quote

Zebra R4D-0UGA000E-00 Portable Barcode Printer

Overview

Full specifications (PDF)

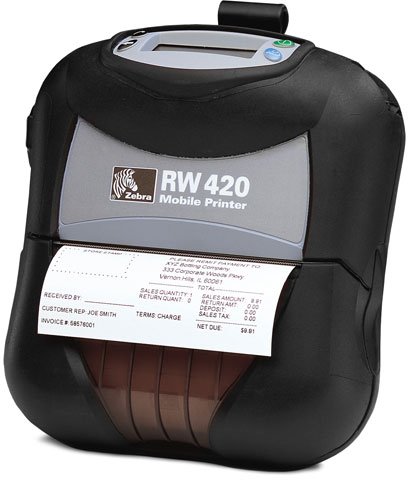

Zebra RW 420 Portable Barcode Printer Model Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!

Zebra R4D-0UGA000E-00 Portable Barcode Printer Overview

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Receipt Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
UPC-E
UPC-A
EAN-13
EAN-14
EAN-8
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
Plessey
FIM
POSTNET
Interleaved 2 of 5
MSI
Codabar
PDF-417
Data Matrix
Maxi Code
RSS
GS1 DataBar
QR Code

Memory

Standard Memory:

8 MB

Flash Memory:

16 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11g

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Receipt
Gap
Tag
Continuous Receipt
Linerless
Synthetic Media
UV Coated Media

Media Thickness:

6.30 mil

Maximum Roll Diameter:

2.25"

Maximum Label Width:

4.12"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
EPL
XML
ZPL

Power Description

Power Source:

Battery

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Rechargeable:

Yes

Physical Characteristics

Form Factor:

Portable

Height:

6.9"

Width:

6.3"

Depth:

Weight (Approximate):

2 lb

Miscellaneous

Platform Supported:

Item Numbers

GTIN: 5711045342097

EAN: 5711045342097

UNSPSC: 45101512

Q&A

Questions? Get help from a
Printer Expert!

The Zebra R4D-0UGA000E-00 Portable Barcode Printer is also known as R4D-0UGA000E-00
