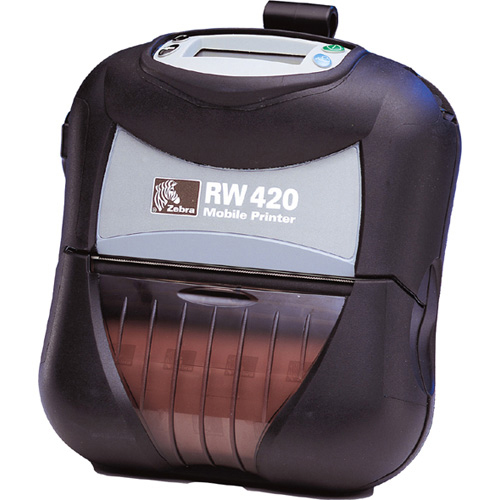

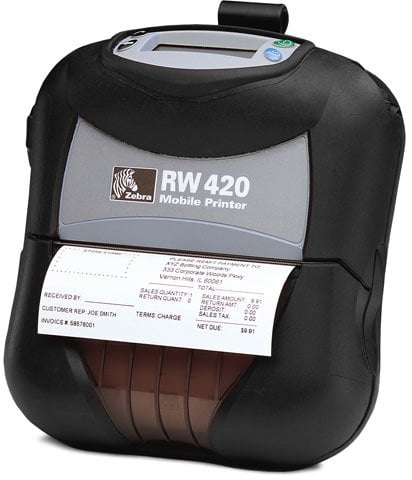

Zebra R4D-0U0A010N-00 Portable Barcode Printer

The Zebra R4D-0U0A010N-00 Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra RW 420 - Direct Thermal mobile printer, 203 dpi, 4" print width, USB/RS-232 interfaces, Magnetic Stripe and Contact Smart Card reader. Includes belt clip. Charger and interface cables sold separately, see accessories.
Printer Type
Mobile
Printing Technology
Direct Thermal
Print Resolution
203 dpi
Max Print Width
4 inch
  • A smart and inexpensive solution to print temporary documents
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Ideal for point-of-sale transactions for quick receipt printing
  • Carry your printer with you anywhere with its lightweight design
  • 4.12" maximum label width to easily accommodate your needs with added productivity
  • Supports receipt media type for better reliance and maximum usability
  • Comes with 16 MB standard memory to make you productive with the direct thermal printer?s smooth performance
  • LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage
Read More

Need a different version? See all Zebra RW 420 Portable Barcode Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra R4D-0U0A010N-00 Portable Barcode Printer
Zebra R4D-0U0A010N-00 Portable Barcode Printer Zebra R4D-0U0A010N-00 Portable Barcode Printer
Zebra R4D-0U0A010N-00 Portable Barcode Printer
Zebra R4D-0U0A010N-00 Portable Barcode Printer
Full specifications (PDF)
Zebra RW 420 Portable Barcode Printer Model Overview
Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!
Zebra R4D-0U0A010N-00 Portable Barcode Printer Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among variety of features. As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW 420 can withstand the harsh demands of a number of Route Accounting and Field Service printing applications, including Invoices, Delivery Receipts, Service Estimates, Sales Orders and Inventory Management.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC 2 or 5 Digit Extension
  • Plessey
  • FIM
  • POSTNET
  • Interleaved 2 of 5
  • MSI
  • Codabar
  • PDF-417
  • Data Matrix
  • Maxi Code
  • RSS
  • QR Code
  • GS1 DataBar
Encoding Technology:
Smart Card Encoder
Features:
Magnetic Card Reader
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Receipt
  • Tag
  • Continuous Form
  • Continuous Receipt
  • Gap
Media Sensor:
Transmissive Media Sensor
Media Thickness:
6.30 mil
Maximum Roll Diameter:
2.25"
Maximum Label Width:
4.12"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • CPCL
  • ZPL
  • EPL
  • XML
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
4000 mAh
Physical Characteristics
Form Factor:
Portable
Height:
6.9"
Width:
6.3"
Depth:
3.1"
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0100177304090, 0163120853649, 0672113409294, 0778889970195
UPC: 100177304090, 163120853649, 672113409294, 778889970195
EAN: 0100177304090, 0163120853649, 0672113409294, 0778889970195
UNSPSC: 45101512
