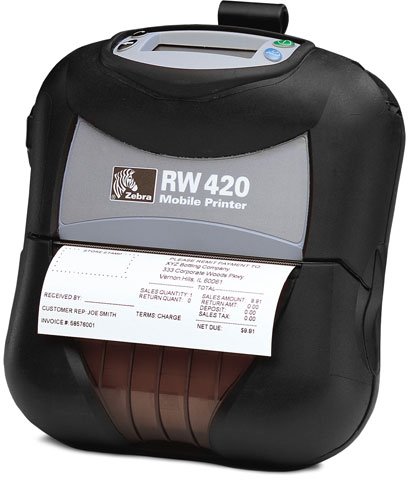

Zebra R4A-0UMA010N-00 Portable Barcode Printer

Part Number: R4A-0UMA010N-00
Model: RW 420
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Print Resolution
203 dpi

Product Description:

  Direct thermal printing, 8MB DRAM/4MB Flash, 203 dpi, 4" print width, USB/RS-232 interfaces, 802.11b radio, Magnetic Stripe and Contact Smart Card reader, Belt Clip. Charger and interface cables sold separately, see accessories.
Explore all Zebra RW 420 Portable Barcode Printers
Add to Quote
Zebra R4A-0UMA010N-00 Portable Barcode Printer
Zebra R4A-0UMA010N-00 Portable Barcode Printer
Zebra R4A-0UMA010N-00 Portable Barcode Printer
Zebra R4A-0UMA010N-00 Portable Barcode Printer Zebra R4A-0UMA010N-00 Portable Barcode Printer

Full specifications (PDF)

Zebra RW 420 Portable Barcode Printer Model Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!
Zebra R4A-0UMA010N-00 Portable Barcode Printer Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW 420 can withstand the harsh demands of a number of Route Accounting and Field Service printing applications. It has Standard media.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • UPC-E
  • UPC-A
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • FIM
  • POSTNET
  • Interleaved 2 of 5
  • MSI
  • Codabar
  • PDF-417
  • Data Matrix
  • Maxi Code
  • RSS
  • QR Code
Application/Usage:
Mobile
Features:
  • LCD Display
  • Magnetic Card Reader
  • Smart Card Reader
  • Belt Clip
Print Technology:
Direct Thermal
Memory
Standard Memory:
4 MB
Flash Memory:
8 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Tag
  • Label
  • Synthetic Media
  • Continuous Receipt
  • UV Coated Media
  • Receipt
  • Thermal Paper
Media Size:
  • Custom Size - 4.13"
  • 4.10"
  • 2"
Maximum Roll Diameter:
2.25"
Fonts & Emulation
Language Emulation:
  • CPCLL
  • ZPL
  • EPL
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
4000 mAh
Physical Characteristics
Form Factor:
Portable
Height:
6.9"
Width:
6.3"
Depth:
3.1"
Miscellaneous
Package Contents:
  • RW 420 Mobile Receipt Printer
  • Lithium ion battery
Additional Information:
  • Country Code: North America (US/Canada/ Mexico/Australia/ Malaysia)
Platform Supported:
PC
Certifications & Standards:
  • FCC Part 15 Class B
  • Canadian ICES-003
  • VCCI
  • NOM
  • NYCE
  • CE compliance (Class B)
  • C-Tick
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
