Zebra R4A-0ULA000N-00 Portable Barcode Printer

A newer version of this item is available.
It is replaced by the Zebra ZQ52-AUN1000-00 Portable Barcode Printer.

Zebra RW420 - Direct thermal, 203 dpi, 8MB DRAM, 4MB Flash, LCD, 802.11b and Bluetooth interfaces and Belt Clip. Charger not included, see accessories. Power supply (Part# AT17696-1) not included, see accessories.

Printer Type

Mobile

Printing Technology

Direct Thermal

Interface Options

Bluetooth, Wi-Fi

Print Resolution

203 dpi

Max Print Width

4 inch

A smart and inexpensive solution to print temporary documents
203 maximum print resolution (dpi) offers great dependability with added efficiency
Produce high-quality documents with this monochrome printer to increase your productivity
Ideal for point-of-sale transactions for quick receipt printing
Portable form factor for your printing convenience and better reliance
Print your documents from the comfort of your couch with Wireless LAN connectivity enabled
Supports tag media type for dependable, efficient results with maximum productivity
Belt Clip feature for maximum productivity with added dependability
Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
Custom Size - 4.13" media size for better reliance and maximum usability

Need a different version? See all Zebra RW 420 Portable Barcode Printers

Discontinued See Replacement

Add to Quote

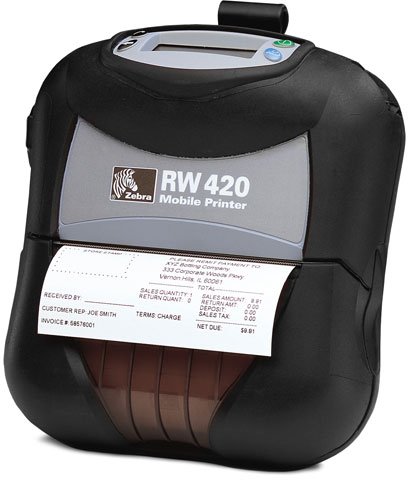

Zebra R4A-0ULA000N-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra RW 420 Portable Barcode Printer Model Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!

Zebra R4A-0ULA000N-00 Portable Barcode Printer Overview

RW420 Receipt Printer is ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go. RW420 can withstand the harsh demands of a number of Route Accounting and Field Service printing applications, including: Invoices, Delivery Receipts, Service Estimates, Sales Orders, and Inventory Management.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Receipt Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
UPC-E
UPC-A
EAN-8
EAN-13
EAN-14
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
Plessey
FIM
POSTNET
Interleaved 2 of 5
MSI
Codabar
PDF-417
Data Matrix
Maxi Code
RSS
QR Code

Features:

Belt Clip
LCD Display

Memory

Standard Memory:

8 MB

Flash Memory:

4 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Bluetooth:

Yes

Wireless LAN:

Yes

Media Types & Handling

Media Type:

Tag
Label
Synthetic Media
Continuous Receipt
UV Coated Media
Receipt
Thermal Paper

Media Size:

Custom Size - 4.13"
4.10"
2"

Maximum Roll Diameter:

2.25"

Fonts & Emulation

Language Emulation:

CPCL
ZPL
EPL

Power Description

Input Voltage:

7.4 V DC

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

4000 mAh

Physical Characteristics

Form Factor:

Portable

Height:

6.9"

Width:

6.3"

Depth:

Miscellaneous

Package Contents:

RW420 Receipt Printer
Lithium Ion Battery

Additional Information:

Auto-detect Firmware Load
Communication: Dual Radio
Media sensors: Bar and Gap
Media Handling: Standard media (with IP54 rating)
Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
Country Code: North America and Other (US/Canada/ Mexico/Australia/ Malaysia)

Platform Supported:

Certifications & Standards:

FCC Part 15 Class B
Canadian ICES-003
VCCI
NOM/NYCE
CE compliance (Class B)
C-Tick
CSA

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 45101512

Q&A

Questions? Get help from a
Printer Expert!

The Zebra R4A-0ULA000N-00 Portable Barcode Printer is also known as ZEB-R4A-0ULA000N-00 or R4A-0ULA000N-00.
