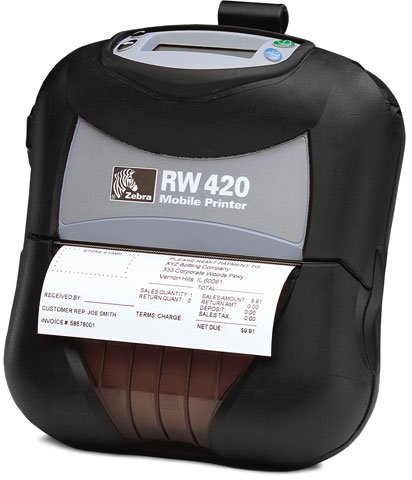

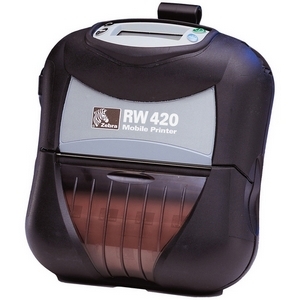

Zebra R4A-0UBA010N-00 Portable Barcode Printer

Zebra R4D-0UBA010N-00 Portable Barcode Printer A newer version of this item is available.
It is replaced by the Zebra R4D-0UBA010N-00 Portable Barcode Printer.
Zebra RW420 - Direct thermal, 203 dpi, 8MB DRAM, 4MB Flash, Magnetic Stripe & Smart Card reader, Bluetooth and Belt Clip. Charger not included, see accessories. Power supply (Part# AT17696-1) not included, see accessories.
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Bluetooth
Print Resolution
203 dpi
Max Print Width
4 inch
  • Direct Thermal Printer provides you with all the features that you need to print quickly and easily
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Ideal for point-of-sale transactions for quick receipt printing
  • Portable form factor for your printing convenience and better reliance
  • Supports tag media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal Printer with mobile application/usage provides dependable printing solution with added productivity
  • LCD Display feature for maximum efficiency and convenience
  • Comes with 4 MB standard memory for timely printing with added reliability
  • Custom Size - 4.13" media size for better reliance and maximum usability
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Zebra RW 420 Portable Barcode Printer Model Overview
Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!
Zebra R4A-0UBA010N-00 Portable Barcode Printer Overview

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW 420 can withstand the harsh demands of a number of Route Accounting and Field Service printing applications. It has Standard media.

Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • UPC-E
  • UPC-A
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • FIM
  • POSTNET
  • Interleaved 2 of 5
  • MSI
  • Codabar
  • PDF-417
  • Data Matrix
  • Maxi Code
  • RSS
  • QR Code
Application/Usage:
Mobile
Features:
  • LCD Display
  • Magnetic Card Reader
  • Smart Card Reader
  • Belt Clip
Memory
Standard Memory:
4 MB
Flash Memory:
8 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Bluetooth:
Yes
Media Types & Handling
Media Type:
  • Tag
  • Label
  • Synthetic Media
  • Continuous Receipt
  • UV Coated Media
  • Receipt
  • Thermal Paper
Media Size:
  • Custom Size - 4.13"
  • 4.10"
  • 2"
Maximum Roll Diameter:
2.25"
Fonts & Emulation
Language Emulation:
  • CPCLL
  • ZPL
  • EPL
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
4000 mAh
Physical Characteristics
Form Factor:
Portable
Height:
6.9"
Width:
6.3"
Depth:
3.1"
Miscellaneous
Package Contents:
  • RW 420 Mobile Receipt Printer
  • Lithium ion battery
Additional Information:
  • Country Code: North America (US/Canada/ Mexico/Australia/ Malaysia)
Platform Supported:
PC
Certifications & Standards:
  • FCC Part 15 Class B
  • Canadian ICES-003
  • VCCI
  • NOM
  • NYCE
  • CE compliance (Class B)
  • C-Tick
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra R4A-0UBA010N-00 Portable Barcode Printer is also known as ZEB-R4A0UBA010N00 or R4A-0UBA010N-00.
