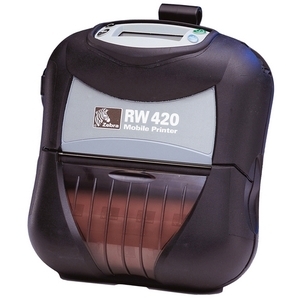

Zebra R4A-0U0A010N-00 Portable Barcode Printer
Part Number:
R4A-0U0A010N-00
Request a Bulk Pricing Quote
Chat with a Product Expert
Zebra RW 420 Portable Barcode Printer Model Overview

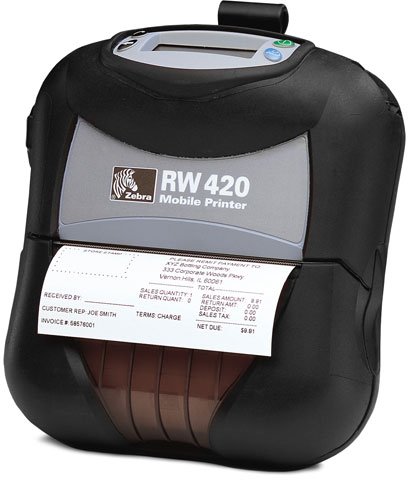

Designed for the Road Warrior, the Zebra RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Its convenient vehicle mounting and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go!
Zebra R4A-0U0A010N-00 Portable Barcode Printer Overview
RW 420 is a mobile printer ideal for printing delivery receipts and invoices on the go. Its convenient vehicle mounting, cable ready, and charging options, as well as its user-intuitive interfaces and angled display, allow for easy use while on the go. As the only mobile printer to meet the stringent IP54 dust and water resistance rating, the RW 420 can withstand the harsh demands of a number of Route Accounting and Field Service printing applications, including: Invoices, Delivery Receipts, Service Estimates, Sales Orders, and Inventory Management.
Technical Information
Recommended Use:
Receipt Print
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
Code 39 Code 93 UCC/EAN 128 Code 128 UPC-E UPC-A EAN-8 EAN-13 EAN-14 UPC 2 or 5 Digit Extension EAN With 2 or 5 Digit Extension Plessey FIM POSTNET Interleaved 2 of 5 MSI Codabar PDF-417 Data Matrix Maxi Code RSS QR Code
Application/Usage:
Mobile
Features:
LCD Display Smart Card Reader Magnetic Card Reader
Print Technology:
Direct Thermal
Memory
Interfaces/Ports
Display & Graphics
Media Types & Handling
Media Type:
Tag Label Synthetic Media Continuous Receipt UV Coated Media
Media Thickness:
6.30 mil
Maximum Roll Diameter:
2.25"
Fonts & Emulation
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
4000 mAh
Physical Characteristics
Miscellaneous
Package Contents:
RW 420 Mobile Receipt Printer Lithium ion battery
Additional Information:
Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish) Communication: None (cable ready) Media Handling: Standard media (with IP54 rating) Readers: MCR/ SCR (EMV certified) Grouping "N": (US/ Canada/ /Australia/New Zealand/ Mexico/ Nicaragua) Construction: Impact-modified polycarbonate with fused oil-and-abrasion-resistant rubber overmold (six-foot drop protection) Advanced 32 bit architecture for high-speed processing Media sensors: Bar, gap Auto-detect firmware load
Certifications & Standards:
FCC Part 15 Class B Canadian ICES-003 VCCI NOM NYCE CE Class B C-Tick CSA IP54 EMV
