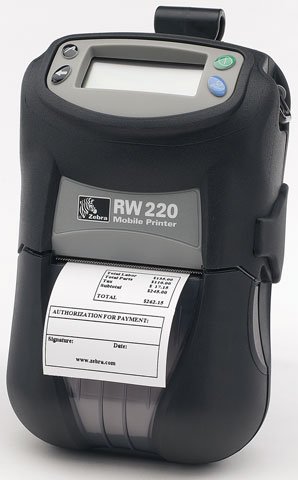

Zebra R2D-0UGA010N-00 Portable Barcode Printer

Zebra ZQ1-0UG10010-00 Receipt Printer A newer version of this item is available.
It is replaced by the Zebra ZQ1-0UG10010-00 Receipt Printer.
Zebra RW 220 - RW220 8M/16M U/L 80211B/G MCR
Printer Type
Mobile
Printing Technology
Direct Thermal
Print Resolution
203 dpi
  • Direct Thermal Printer provides you with all the features that you need to print quickly and easily
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Conveniently print your receipts
  • Bring convenience, value, and feature to any mobile environment
  • 2.37" maximum label width for dependable, desired results
  • Supports continuous receipt media type for maximum feasibility and better accommodation of your requirements
  • Smart Battery Management feature for better reliance and usability
  • Comes with 16 MB standard memory to make you productive with the direct thermal printer smooth performance
  • LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage
Read More

Need a different version? See all Zebra RW 220 Portable Barcode Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra R2D-0UGA010N-00 Portable Barcode Printer
Zebra R2D-0UGA010N-00 Portable Barcode Printer Zebra R2D-0UGA010N-00 Portable Barcode Printer Zebra R2D-0UGA010N-00 Portable Barcode Printer
Zebra R2D-0UGA010N-00 Portable Barcode Printer
Zebra R2D-0UGA010N-00 Portable Barcode Printer

Full specifications (PDF)
Zebra RW 220 Portable Barcode Printer Model Overview
Designed for the Road Warrior, the RW 220 mobile receipt printer is ideal for printing delivery receipts and invoices on the go. The modular design allows users to choose among wireless options, card readers, and integral accessories such as a vehicle mount for simplified route printing. Easy-access vehicle mounting cradles and charging options as well as user-intuitive interfaces and angled displays enhance the convenience and simplicity of mobile printing. Uniquely designed for harsh outdoor environments, RW 220 mobile printers endure extreme temperatures and weather conditions. Bounce it in the truck, carry it in the rain, drop it on the pavement, and expect the same performance day in and day out.
Zebra R2D-0UGA010N-00 Portable Barcode Printer Overview

Road Warrior! This rough and-tough receipt and limited-label printer is IP54-rated for harsh environments, and offers LCD for battery/ network status, vehicle cradles for convenient on-the-road operation, and card readers for in-the-field payment processing.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.20"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • UPC-A
  • UPC-E
  • EAN-13
  • EAN-14
  • EAN-8
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • Plessey
  • FIM
  • POSTNET
  • Interleaved 2 of 5
  • MSI
  • Codabar
  • PDF-417
  • Data Matrix
  • Maxi Code
  • RSS
  • GS1 DataBar
  • QR Code
  • Aztec Code
Features:
  • Smart Battery Management
  • Abrasion Resistant
  • Belt Clip
  • Magnetic Card Reader
  • Smart Card Reader
Memory
Standard Memory:
16 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11g
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Continuous Receipt
  • Receipt
  • Tag
  • Gap
  • Direct Thermal Paper
  • Synthetic Media
  • UV Coated Media
  • Linered Media
Media Sensor:
Transmissive Media Sensor
Media Thickness:
6.30 mil
Maximum Roll Diameter:
2.25"
Maximum Label Width:
2.37"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • CPCL
  • ZPL
  • XML
  • EPL
Power Description
Power Source:
Battery
Input Voltage:
7.4 V DC
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Portable
Height:
6.8"
Width:
4.4"
Depth:
2.9"
Weight (Approximate):
1.45 lb
Miscellaneous
Package Contents:
  • RW220 Receipt Printer
  • Battery
  • Belt Clip
  • Performance Radio
Platform Supported:
PC
Certifications & Standards:
  • IP54
  • EMV
  • FCC Part 15 Class B
  • Canadian ICES-003
  • VCCI
  • NOM/NYCE
  • CE compliance (Class B)
  • C-Tick
  • CSA
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra R2D-0UGA010N-00 Portable Barcode Printer is also known as ZEB-R2D-0UGA010N-00 or R2D-0UGA010N-00.
