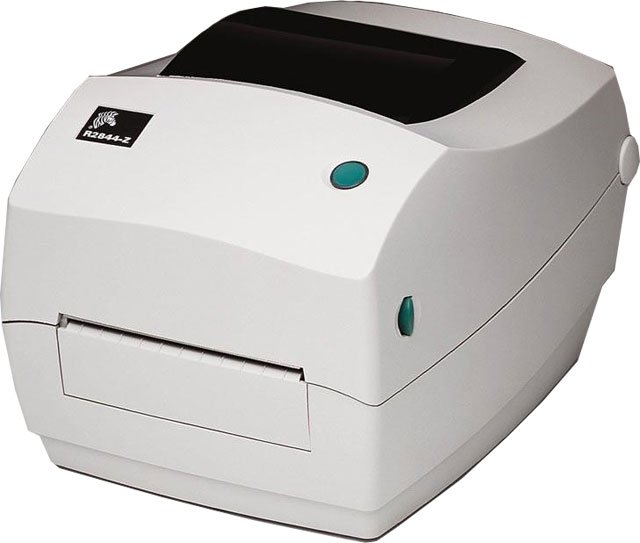

Zebra R284-10400-0001 RFID Printer

The Zebra R284-10400-0001 RFID Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra R2844-Z - Thermal Transfer HF RFID (13.56 MHz), 4" print width, 203DPI, Serial/ Ethernet/ USB, Standard Flash (4MB) SDRAM (8MB).
Interface Options
Ethernet
Print Resolution
203 dpi
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Designed for today's dynamic enterprise applications
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length for your convenience and feasible usability
  • Supports roll fed media type for dependable, efficient results with maximum productivity
  • Comes with 8 MB standard memory to make you productive with the direct thermal/thermal transfer printer smooth performance
  • 4.25" x Roll Paper media size for better reliance and maximum usability
Read More

Need a different version? See all Zebra R2844-Z RFID Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra R284-10400-0001 RFID Printer
Zebra R284-10400-0001 RFID Printer Zebra R284-10400-0001 RFID Printer
Zebra R284-10400-0001 RFID Printer
Zebra R284-10400-0001 RFID Printer
Full specifications (PDF)
Zebra R2844-Z RFID Printer Model Overview
The Zebra R2844-Z is an excellent choice for desktop direct thermal/thermal transfer printing as well as desktop RFID encoding. The Zebra R2844-Z is ideal for wristband, smart labels and RFID tags for smaller items such as in the pharmaceutical and healthcare industries. The Zebra R2844-Z features a range of interface choices and supports the 13.56 MHz HF RFID range. Choose the Zebra R2844-Z for all your desktop RFID needs!
Zebra R284-10400-0001 RFID Printer Overview

Fulfilling the need for a compact RFID printing solution that can encode smart labels at the point of use, the R2844-Z printer/encoder is one of the most versatile in the industry! Designed for printing and encoding smart media such as wristbands and smart labels, the R2844-Z meets the needs of applications requiring greater processing speed and more connectivity choices

Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • Codabar
  • UPC-A
  • EAN-8
  • Plessey
  • Interleaved 2 of 5
  • Standard 2 of 5
  • UPC-E
  • EAN-13
  • Industrial 2 of 5
  • LOGMARS
  • POSTNET
  • MSI
  • Planet Code
  • EAN-14
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • Codablock
  • Maxi Code
  • PDF-417
  • Data Matrix
  • TLC 39
  • QR Code
  • RSS
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
RFID
Maximum Operating Frequency:
13.56 MHz
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
RFID:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Form
  • Tag Stock
Media Size:
4.25" x Roll Paper
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL
  • ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.8"
Width:
7.9"
Depth:
9.8"
Miscellaneous
Package Contents:
  • R2844-Z RFID Printer
  • User Documentation: English
Additional Information:
  • Auto-Calibration
  • Head-up sensor
  • No Real Time Clock
  • User Documentation: English Only
  • Zebra E3 Printhead Energy Control
  • Double-walled ABS case construction
  • Fully enclosed 5 inches media compartment
  • Printer Font Set: USA and European (standard)
  • Zebra Printer Management - real-time connectivity control solution
Platform Supported:
PC
Certifications & Standards:
Quadrifoglio Sistemi d'Arredo S.p.A
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0807027568144
UPC: 807027568144
EAN: 0807027568144
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra R284-10400-0001 RFID Printer is also known as ZEB-R284104000001 or R284104000001.
