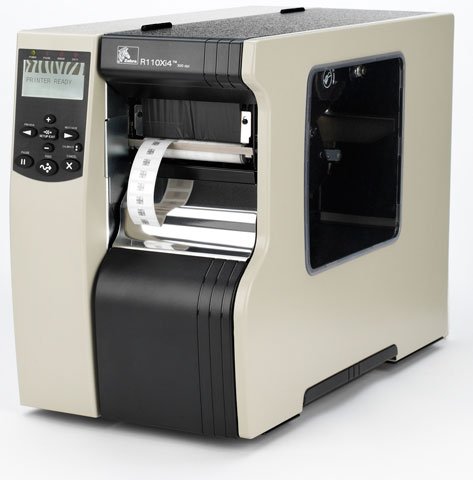

Zebra R13-801-00110-R0 RFID Printer

Part Number: R13-801-00110-R0
Model: R110Xi4
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Interface Options
Ethernet
Print Resolution
300 dpi
Printer Options
Cutter

Product Description:

  R110XI4 300DPI,US, USB/SER/PAR INT 10/100 CUT W/TRAY, 64MB
Explore all Zebra R110Xi4 RFID Printers
Add to Quote
Zebra R13-801-00110-R0 RFID Printer
Zebra R13-801-00110-R0 RFID Printer
Zebra R13-801-00110-R0 RFID Printer
Zebra R13-801-00110-R0 RFID Printer
Zebra R13-801-00110-R0 RFID Printer
Zebra R13-801-00110-R0 RFID Printer
Zebra R13-801-00110-R0 RFID Printer Zebra R13-801-00110-R0 RFID Printer Zebra R13-801-00110-R0 RFID Printer Zebra R13-801-00110-R0 RFID Printer Zebra R13-801-00110-R0 RFID Printer

Full specifications (PDF)

Zebra R110Xi4 RFID Printer Model Overview

The Zebra R110Xi4 RFID printer/encoder is optimized for high-volume operations, giving users the ability to print and encode a variety of UHF radio frequency identification smart labels for a multitude of applications. The R110Xi4 is designed with innovative, industry-leading features to meet the demands of current and future applications, and leverages the built-to-last Xi4 printer platform for robust performance. The R110Xi4 also features RFID media flexibility, RFID inlay position flexibility which allows the use of media converted for other brand printers and supports widest range of transponder designs and sizes.
Zebra R13-801-00110-R0 RFID Printer Overview

Streamline operations with an innovative high-volume RFID encoder and printer. Print and encode a variety of UHF radio frequency identification smart labels for a number of applications, including healthcare specimen smart labeling, item-level tagging and more.

Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • Maxi Code
  • QR Code
  • TLC 39
  • Micro PDF
  • RSS
  • GS1 DataBar
  • Aztec Code
  • RSS-14
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Clear Media Side Door
  • Element Energy Equalizer
  • Auto-calibration
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
64 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
RFID:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Continuous Label
  • Die-cut Label
  • Black Mark
  • Notch
Media Handling:
1 x Catch Tray
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
10.3"
Depth:
20.4"
Weight (Approximate):
50 lb
Miscellaneous
Package Contents:
  • R110Xi4 RFID Label Printer
  • North American Edition 120 VAC Cord
Platform Supported:
PC
Certifications & Standards:
  • FCC-B
  • C-Tick
  • IEC 60950-1
  • EN 55022 Class B
  • EN 55024
  • EN 61000-3-2
  • EN 61000-3-3
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
