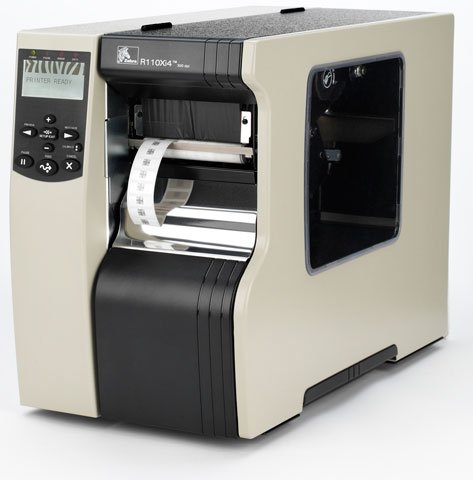

Zebra R13-801-00000-R0 RFID Printer


5.0

(1 reviews)

Zebra R110Xi4 - RFID Printer, UHF, Thermal transfer, USB/Serial/Parallel/Ethernet Connection, ZebraNet Internal Print Server, 300 dpi, LCD. Cables Sold Separately.
RFID processes optimized for fastest label throughput

The Zebra R110Xi4 RFID printer/encoder is optimized for high-volume operations, giving users the ability to print and encode a variety of UHF radio frequency identification smart labels for a multitude of applications. The R110Xi4 is designed with innovative, industry-leading features to meet the demands of current and future applications, and leverages the built-to-last Xi4 printer platform for robust performance. The R110Xi4 also features RFID media flexibility, RFID inlay position flexibility which allows the use of media converted for other brand printers and supports widest range of transponder designs and sizes.

Technical Information

  • Maximum Mono Print Speed: 14 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4"
  • Recommended Use: RFID Label Print
  • Encoding Technology: RFID Encoder
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • UCC Case Codes
    • ISBT-128
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • LOGMARS
    • MSI
    • Codabar
    • Planet Code
    • Codablock
    • PDF-417
    • Code 49
    • Data Matrix
    • QR Code
    • Maxi Code
    • TLC 39
    • Micro PDF
    • RSS
    • GS1 DataBar
    • Aztec Code
    • EAN

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: RXi4
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: R110Xi4
  • Product Name: R110Xi4 RFID Label Printer

Physical Characteristics

  • Height: 15.5"
  • Width: 10.3"
  • Depth: 20.4"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Maximum Label Length: 12.50 ft
  • Media Type:
    • Black Mark
    • Continuous Label
    • Die-cut Label
    • Notch
  • Media Thickness: 12 mil
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8"

Other

  • Platform Supported: PC
  • Package Contents:
    • R110Xi4 RFID Label Printer
    • North American Edition 120 VAC Power Cord
    • User Guide
    • Sotware CD
    • R110Xi4 RFID Label Printer
    • North American Edition 120 VAC Power Cord
    • User Guide
    • Sotware CD

Fonts & Emulation

  • Language Emulation:
    • XML
    • ZPL II

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SDRAM
  • Flash Memory: 8 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Power Description

  • Input Voltage: 120 V AC

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model R110Xi4
Interface USB, Ethernet, RS-232 Serial, Parallel
Maximum Print Width 4.00" max width
Print Resolution 300 dpi
Form Factor Industrial
Frequency Range UHF


Customer Review Summary


5.0

(based on 1 reviews)

Ratings Distribution

  • 5 Stars



    (1)

  • 4 Stars



    (0)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 1 customers

Sort by

Displaying reviews 1-1

Back to top


5.0

"The Cadillac of Printers"

By RFID Novice

from Royal Oak, MI

6/21/2012

Verified Reviewer

Pros

  • Ease of Use
  • Rugged

Cons

Best Uses

  • Asset tracking
  • Distribution
  • Inventory management
  • Shipping-Receiving

Comments about Zebra R110Xi4 R13-801-00000-R0:

We installed and networked four model R110Xi printer/encoders to produce RFID labels for outbound shipments. They receive print commands from RFID software, which is installed on the host computer. Once the Zebra printer/encoder outputs properly encoded RFID shipping labels, we apply the label by hand to cases of our product. These cases are then stacked on pallets, which are verified with a portal reader before they are shrink-wrapped. The reader captures the RFID carton label data and passes it to the system software, which checks the pallet against the order before clearing it for shipment. The RFID system is performing reliably, and is exceeding our expectations
