Zebra R13-7H1-00000 RFID Printer

The Zebra R13-7H1-00000 RFID Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra R110xi - RFID Printer-Encoder (Multi-Protocol RFID Reader, 300 dpi, ZebraNet Internal Wireless Plus and Internal ZebraNet 10/100 with Radio Card, 120VAC Cord-NA, 16MB SDRAM, ZPLII, XML and Clear Media Side Door and Media Hanger)
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy maximum efficiency with rfid label print printing
  • Enjoy the freedom of wireless connectivity. With Wi-Fi, you will get things done faster.
  • 4.49" maximum label width for dependable, desired results
  • 39" maximum label length for your convenience and feasible usability
  • Supports die-cut label media type for better reliance and maximum usability
  • Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
Read More

Need a different version? See all Zebra R110xi RFID Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra R13-7H1-00000 RFID Printer
Zebra R13-7H1-00000 RFID Printer Zebra R13-7H1-00000 RFID Printer Zebra R13-7H1-00000 RFID Printer
Zebra R13-7H1-00000 RFID Printer
Zebra R13-7H1-00000 RFID Printer

Full specifications (PDF)

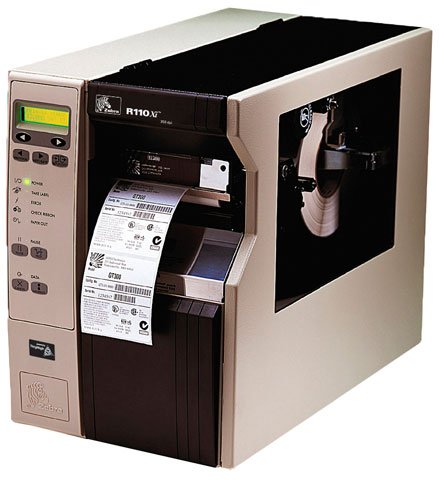

Zebra R110xi RFID Printer Model Overview
Built on the solid, tested Xi III Plus platform, the Zebra R110xi printer/encoder offers an unprecedented level of on-demand printing flexibility in tag placement and label size (4-inch) as well as unique features such as XML encoding for a seamless integration into enterprise systems, automatic inlay position calibration, program positioning, multiple power levels for precisely encoding small labels, and statistics tracking, which allows customers to track the number of good and unusable labels. For companies looking to comply with RFID mandates, the R110xi provides a robust and flexible solution with key advantages offering investment protection, efficiency and productivity.
Zebra R13-7H1-00000 RFID Printer Overview

Built on the solid, tested XiIIIPlus platform, the R110Xi Thermal Label Printer offers an unprecedented level of on-demand printing flexibility in tag placement. It features the ThingMagic RFID reader module which offers the flexibility needed to guarantee a simple, cost-free upgrade path to emerging RFID protocols.

Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Code 11
  • Code 93
  • Code 39
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC-A
  • UPC-E
  • Code 128 UCC
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • TLC 39
  • Micro PDF
  • Aztec Code
  • Codabar
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
Real Time Clock:
Yes
Features:
LCD Display
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Wireless LAN:
Yes
RFID:
Yes
Media Types & Handling
Media Type:
  • Die-cut Label
  • Continuous Form
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
120 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.49"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
10.4"
Depth:
19.5"
Miscellaneous
Package Contents:
  • R110Xi RFID Thermal Label Printer
  • Power Cord North American Edition
  • RXi User's Guide
  • CD (Includes: Ztools Utilities, ZPL II Programming Guide, Zebra Designer Software, Zebra Designer Pro Software and Universal Windows Printer Driver)
Cables Included:
AC
Additional Information:
  • Label Tracking
  • PCMCIA socket
  • 12-gauge steel frame
  • Enhanced Alert notification
  • RFID antenna port selection
  • 300 unique darkness settings
  • Advanced media/ribbon counter
  • Single 32 bit 133 MHz RISC processor
  • Clear Media Side Door & Media Hanger
  • Place transponders virtually anywhere within a smart label
  • Multi-level Element Energy Equalizer (E3) for superior print quality
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra R13-7H1-00000 RFID Printer is also known as ZEB-R137H100000
