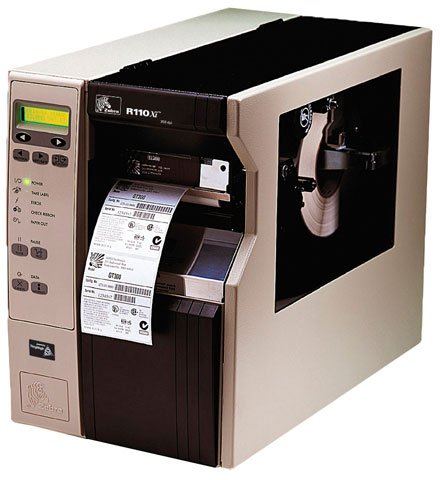

Zebra R13-7A1-00200 RFID Printer

Part Number: R13-7A1-00200

Model: R110xi

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Print Resolution

300 dpi

Product Description:

Thermal transfer & direct thermal, RFID, 300 dpi, ZebraNet 10/100 PrintServer Interface, Rewinder, US Power Supply, 16MB SDRAM, Clear Media Side Door and Media Hanger

Explore all Zebra R110xi RFID Printers

Add to Quote

Overview

Full specifications (PDF)

Zebra R110xi RFID Printer Model Overview

Built on the solid, tested Xi III Plus platform, the Zebra R110xi printer/encoder offers an unprecedented level of on-demand printing flexibility in tag placement and label size (4-inch) as well as unique features such as XML encoding for a seamless integration into enterprise systems, automatic inlay position calibration, program positioning, multiple power levels for precisely encoding small labels, and statistics tracking, which allows customers to track the number of good and unusable labels. For companies looking to comply with RFID mandates, the R110xi provides a robust and flexible solution with key advantages offering investment protection, efficiency and productivity.

Zebra R13-7A1-00200 RFID Printer Overview

R110Xi RFID Printer for four-inch labels offers an unprecedented level of on-demand printing flexibility in tag placement as well as unique features such as XML for seamless integration into enterprise systems, automatic calibration, flexible inlay positioning, multiple power levels, statistics tracking, easier RFID programming and more detailed information through the front panel display.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

RFID Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

8 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

Barcode Symbology Supported:

Codabar
Code 11
Code 93
Code 39
EAN-8
EAN-13
Industrial 2 of 5
Interleaved 2 of 5
ISBT-128
LOGMARS
MSI
Planet Code
Plessey
POSTNET
Standard 2 of 5
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
Code 128-A
Code 128-B
Code 128-C
UCC Case Codes
Codablock
Code 49
Data Matrix
Maxi Code
PDF-417
QR Code
RSS
TLC 39
Micro PDF

Rewinder:

Yes

Memory

Standard Memory:

16 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

RFID

Minimum Operating Frequency:

300 MHz

Maximum Operating Frequency:

3 GHz

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

RFID:

Yes

Media Types & Handling

Media Type:

Continuous Form
Die-cut Label
Black Mark
Label
RFID Label

Media Size:

Custom Size - 4.50"
0.80"
4.50"

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

4.50"

Maximum Label Length:

39"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

ZPL II

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

15.5"

Width:

10.4"

Depth:

19.5"

Miscellaneous

Package Contents:

R110Xi RFID Printer
North American Edition Power Cord
User's Guide
Accessories CD

Cables Included:

Additional Information:

Label Tracking
300 unique darkness settings
Advanced media/ribbon counter
North American Edition, 120 VAC Cord
Clear Media Side Door and Media Hanger
Transmissive and reflective media sensors
Enhanced Alert notification -monitors printhead condition
Multi-level Element Energy Equalizer (E3) for superior print quality
Integrated ThingMagic UHF RFID Reader/Encoder for EPC Class 1, EPC Class 0, Matrics' 0+, ISO18000-06B

Platform Supported:

Certifications & Standards:

Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition

FCC Part 15.107 & 15.109 Class B

FCC Part 15.247

Canadian ICES-003 Class B

IC RSS-210

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108
