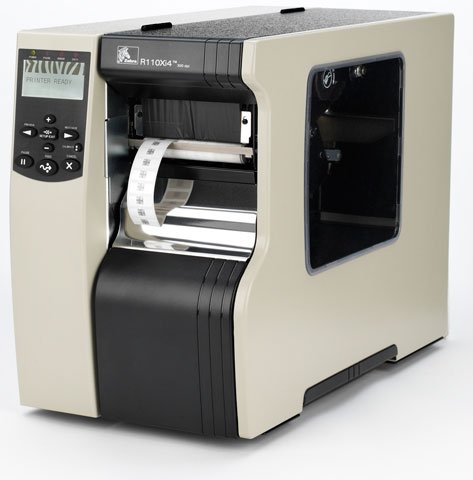

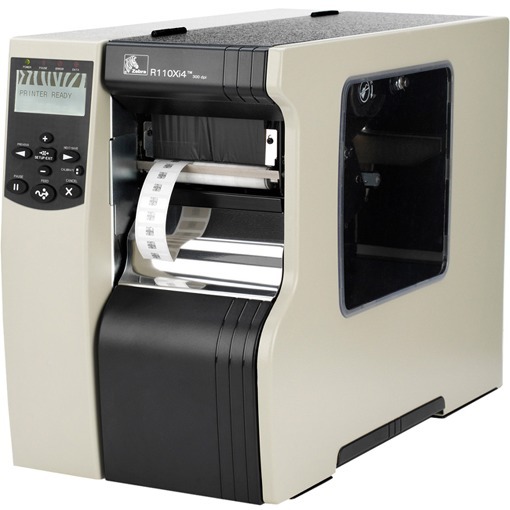

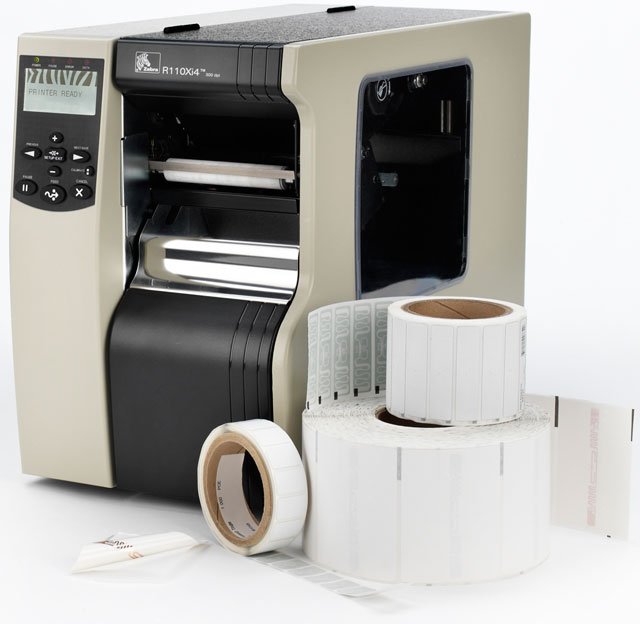

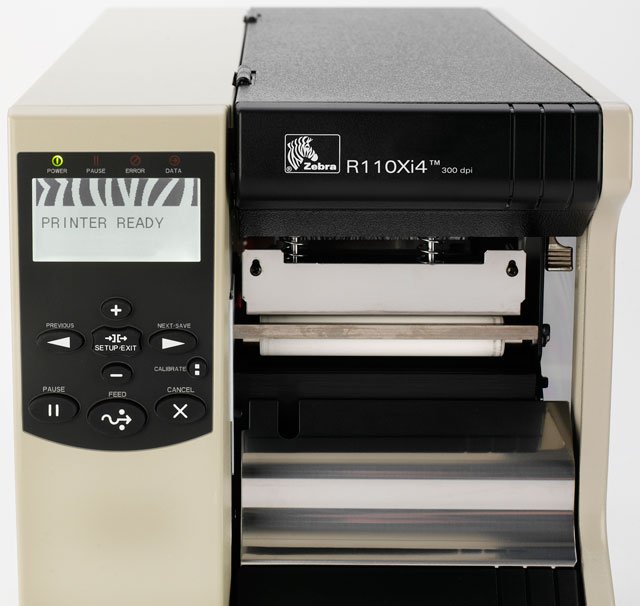

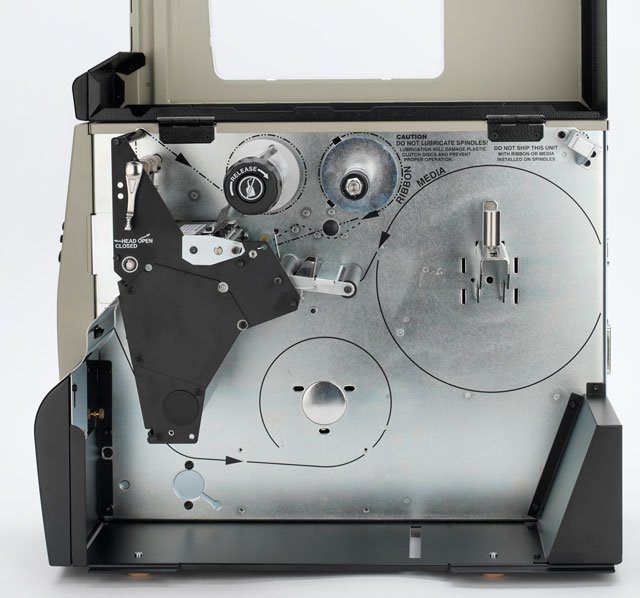

Zebra R12-801-00000-R0 RFID Printer

Part Number: R12-801-00000-R0
Model: R110Xi4
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Interface Options
Ethernet
Print Resolution
203 dpi

Product Description:

  RFID Printer, UHF, Direct Thermal/Thermal Transfer, USB/Serial/Parallel/Ethernet Connection, ZebraNet Internal Print Server, 203 dpi, LCD. Cables Sold Separately.
Explore all Zebra R110Xi4 RFID Printers
Add to Quote
Zebra R12-801-00000-R0 RFID Printer
Zebra R12-801-00000-R0 RFID Printer
Zebra R12-801-00000-R0 RFID Printer
Zebra R12-801-00000-R0 RFID Printer
Zebra R12-801-00000-R0 RFID Printer
Zebra R12-801-00000-R0 RFID Printer
Zebra R12-801-00000-R0 RFID Printer Zebra R12-801-00000-R0 RFID Printer Zebra R12-801-00000-R0 RFID Printer Zebra R12-801-00000-R0 RFID Printer Zebra R12-801-00000-R0 RFID Printer

Full specifications (PDF)

Zebra R110Xi4 RFID Printer Model Overview

The Zebra R110Xi4 RFID printer/encoder is optimized for high-volume operations, giving users the ability to print and encode a variety of UHF radio frequency identification smart labels for a multitude of applications. The R110Xi4 is designed with innovative, industry-leading features to meet the demands of current and future applications, and leverages the built-to-last Xi4 printer platform for robust performance. The R110Xi4 also features RFID media flexibility, RFID inlay position flexibility which allows the use of media converted for other brand printers and supports widest range of transponder designs and sizes.
Zebra R12-801-00000-R0 RFID Printer Overview

With Zebra's R110Xi4 RFID printer/encoder optimized for high-volume operations you can print and encode a variety of UHF radio frequency identification smart labels for a multitude of applications. As Zebra's third-generation RXi printer/encoder, the R110Xi4 is designed with innovative, industry-leading features to meet the demands of current and future applications, and leverages the built-to-last Xi4 printer platform for robust performance.

Full specifications (PDF)
Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
14 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Code 11
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • ISBT-128
  • UPC-A
  • UPC-E
  • EAN-13
  • EAN-8
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • Planet Code
  • Codablock
  • PDF-417
  • Code 49
  • Data Matrix
  • QR Code
  • Maxi Code
  • TLC 39
  • Micro PDF
  • RSS
  • GS1 DataBar
  • Aztec Code
  • EAN
Encoding Technology:
RFID Encoder
Real Time Clock:
Yes
Application/Usage:
Desktop
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
RFID:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Mark
  • Die-cut Label
  • Notch
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
12.50 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • XML
  • ZPL II
Power Description
Input Voltage:
120 V AC
Physical Characteristics
Height:
15.5"
Width:
10.3"
Depth:
20.4"
Miscellaneous
Package Contents:
  • R110Xi4 RFID Label Printer
  • North American Edition 120 VAC Power Cord
  • User Guide
  • Sotware CD
Cables Included:
AC
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0024606567057, 0783555031834
UPC: 024606567057, 783555031834
EAN: 0024606567057, 0783555031834
UNSPSC: 43212108
