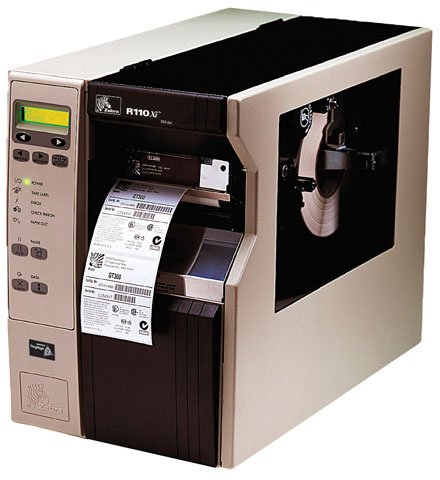

Zebra R12-7A1-00000 RFID Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra R110xi - Thermal transfer, RFID, 200 dpi, Serial, ZebraNet 10/100 PrintServer and USB Interfaces, US Power supply, 16MB SDRAM, Clear Media Side Door and Media Hanger. Order cables separately, see accessories.
On-Demand RFID Printing for up to 4" Tags

Built on the solid, tested Xi III Plus platform, the Zebra R110xi printer/encoder offers an unprecedented level of on-demand printing flexibility in tag placement and label size (4-inch) as well as unique features such as XML encoding for a seamless integration into enterprise systems, automatic inlay position calibration, program positioning, multiple power levels for precisely encoding small labels, and statistics tracking, which allows customers to track the number of good and unusable labels. For companies looking to comply with RFID mandates, the R110xi provides a robust and flexible solution with key advantages offering investment protection, efficiency and productivity.

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 200 dpi
  • Print Speed: 10 ips
  • Interfaces:
    • 1 x Fast Ethernet
    • 1 x Serial
    • 1 x USB 2.0
  • Maximum Print Width: 4"
  • Maximum Label Width: 4.5"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: ZPL II
  • Input Voltage: 120 V AC
  • Input Voltage Range: 90 to 264 V AC
  • RAM Memory: 16MB
  • Flash Memory: 4MB

General Information

Physical Characteristics

  • Dimensions:
    • 15.5" (393.7mm) x 10.37" (263.4mm) x 19.5" (495mm)
    • 15.5" (393.7mm) x 10.37" (263.4mm) x x 19.5" (495mm)
  • Weight: 50 lb (22.68 kg)

Included Features

  • Included Features:
    • Clear Media Side Door & Media Hanger
    • Internal ZebraNet 10/100 Print Server

Environmental Conditions

  • Temperature:
    • 41°F (5°C) to 104°F (40°C) Operating - Thermal Transfer
    • 32°F (0°C) to 104°F (40°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 20 to 85% Operating Non-condensing
    • 5 to 85% Storage Non-condensing

Agency Approvals

  • Agency Approvals:
    • Bi-National UL 60950 3rd edition/CSA CAN/CSA-C22.2 No. 60950-00 Third Edition
    • FCC Part 15.107 Class B
    • FCC Part 15.109 Class B
    • FCC Part 15.247
    • Canadian ICES-003, Class B IC RSS-210
    • Canadian ICES-003, Class BIC RSS-210

RFID

  • Standards Supported:
    • EPC Class 0
    • EPC Class 1
    • ISO18000-06B
    • Matrics' 0+
  • Operating Frequency: 908MHz to 928MHz

Other

  • Package Contents:
    • R110Xi RFID Printer
    • RXi User's Guide
    • North American Edition Power Cord With US Plug
    • Accessories CD

Media Characteristics

  • Maximum Label Roll Diameter: 8"
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Ribbon Setup: Wound Out

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)
