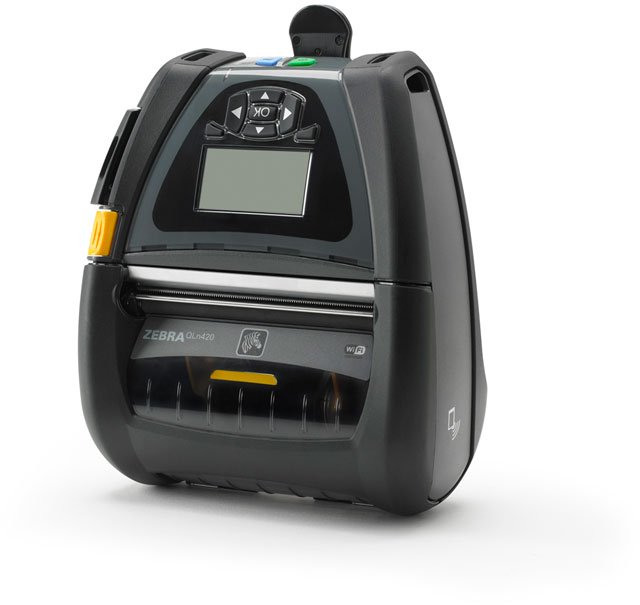

Zebra QN4-AUCA0E00-00 Portable Barcode Printer

The Zebra QN4-AUCA0E00-00 Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra QLn420 - Direct Thermal, 4" print width, Bluetooth/USB Interface, Linered Platen. Charger and cables sold separately.

Print Resolution

203 dpi

A smart and inexpensive solution to print temporary documents
203 maximum print resolution (dpi) for better reliance and added usability
The printer is capable of printing sharp and detailed monochrome documents quickly
Delivers high-speed, hassle-free labeling solution for your business needs
Ideal to be used in field service, and in any application that has a need to print on the go
4.41" maximum label width for your convenience and feasible usability
Supports receipt media type for dependable, efficient results with maximum productivity
Direct Thermal Printer with mobile application/usage provides dependable printing solution with added productivity
Vertical Printing feature for maximum efficiency and convenience
Comes with 128 MB standard memory to make you productive with the direct thermal printer smooth performance

Need a different version? See all Zebra QLn420 Portable Barcode Printers

Discontinued Need Assistance?

Add to Quote

Zebra QN4-AUCA0E00-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra QLn420 Portable Barcode Printer Model Overview

Zebra"s popular QL family of direct thermal mobile label printers has built a highly satisfied following based upon its proven drop resistant durability, user-friendly, productivity-boosting features, and easy integration.

Zebra QN4-AUCA0E00-00 Portable Barcode Printer Overview

Convenience when you need it most, when you're mobile. The QLn420™ provides the kind of rugged construction you need for the most effective use in tough and demanding environments

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.10"

Barcode Symbology Supported:

Code 39
Code 93
UCC 128
EAN 128
Code 128
Codabar
Interleaved 2 of 5
UPC-A
UPC-E
EAN-8
EAN-13
PDF-417
Micro PDF-417
Maxi Code
QR Code
RSS
GS1 DataBar
Aztec Code
Data Matrix
TLC 39

Real Time Clock:

Yes

Application/Usage:

Mobile

Features:

Vertical Printing
Horizontal Printing
Water Resistant
Label Odometer
Belt Clip
Mirror Printing

Memory

Standard Memory:

128 MB

Flash Memory:

256 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Bluetooth:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Receipt
Label
Ticket
Tag
Die-cut Label
Roll Fed
Linered Media
Black Bar
Black Mark

Media Sensor:

Label Taken Sensor
Transmissive Media Sensor
Reflective Media Sensor

Media Thickness:

7.50 mil

Maximum Roll Diameter:

2.60"

Maximum Label Width:

4.41"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
ZPL

Power Description

Power Source:

Battery
Power Adapter

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Physical Characteristics

Form Factor:

Portable

Height:

7.4"

Width:

6.5"

Depth:

3.3"

Weight (Approximate):

2.45 lb

Miscellaneous

Platform Supported:

PC
Handheld

Certifications & Standards:

FCC Part 15
Subpart B
EN55022 Class-B
EN60950
EN55024
VCCI class B
EN55024
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
CE
UL
TUV
CSA
CCX certified
IP42
IP54
IP43
UTF-16
Unicode

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 45101512

Reviews

Q&A

Accessories

Service Contracts

Questions? Get help from a
Printer Expert!

The Zebra QN4-AUCA0E00-00 Portable Barcode Printer is also known as ZEB-QN4-AUCA0E00-00 or QN4-AUCA0E00-00.
