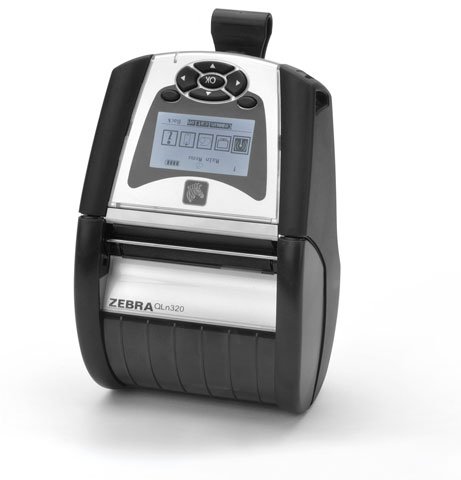

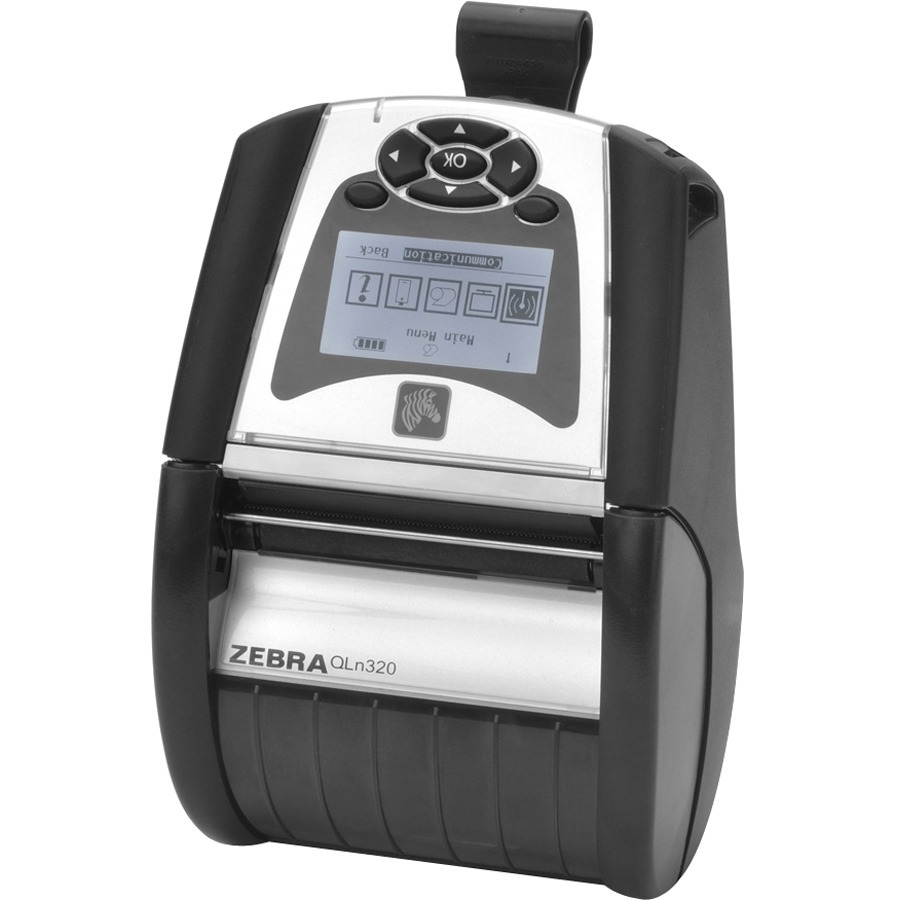

Zebra QN3-AU1A0M00-00 Portable Barcode Printer

Zebra ZQ62-AUFA000-00 Portable Barcode Printer A newer version of this item is available.
It is replaced by the Zebra ZQ62-AUFA000-00 Portable Barcode Printer.
Zebra QLn320 - Direct thermal printing, 2.8" print width, USB/Serial interfaces, made for iPhone. Does not include cradle or cables.
Printer Type
Mobile
Print Resolution
203 dpi
  • Direct Thermal Printer provides you with all the features that you need to print quickly and easily
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Get great quality printing results with label print printing
  • Ideal to be used in field service, and in any application that has a need to print on the go
  • 3.10" maximum label width for dependable, desired results
  • 32" maximum label length for your convenience and feasible usability
  • Supports linerless media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal Printer with mobile application/usage provides dependable printing solution with added productivity
  • Belt Clip feature for better reliance and usability
Read More

Need a different version? See all Zebra QLn320 Portable Barcode Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra QN3-AU1A0M00-00 Portable Barcode Printer
Zebra QN3-AU1A0M00-00 Portable Barcode Printer Zebra QN3-AU1A0M00-00 Portable Barcode Printer Zebra QN3-AU1A0M00-00 Portable Barcode Printer
Zebra QN3-AU1A0M00-00 Portable Barcode Printer
Zebra QN3-AU1A0M00-00 Portable Barcode Printer

Full specifications (PDF)
Zebra QLn320 Portable Barcode Printer Model Overview
Boost productivity and print anywhere with drop-resistant mobile printers that offer high-quality printing, easy integration, proactive alerts and convenient charging. Trust these mobile printers to improve efficiencies throughout operations–in the warehouse, shipping and receiving and merchandising. Quickly and easily print barcode labels, receipts, tickets and more, on-site and on-demand.
Zebra QN3-AU1A0M00-00 Portable Barcode Printer Overview

Boost productivity and print anywhere with drop-resistant mobile printers that offer high-quality printing, easy integration, proactive alerts and convenient charging.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.90"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar
  • Interleaved 2 of 5
  • UPC-A
  • UPC-E
  • EAN-13
  • EAN-8
  • PDF-417
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • RSS
  • GS1 DataBar
  • Aztec Code
  • Data Matrix
  • TLC 39
  • FIM
  • POSTNET
  • Plessey
Peel Facility:
Yes
Real Time Clock:
Yes
Application/Usage:
Mobile
Features:
  • Belt Clip
  • Tear Bar
  • Mirror Printing
  • Label Odometer
  • Vertical Printing
  • Horizontal Printing
  • Dust Resistant
  • Water Resistant
  • Hand Strap
  • Shoulder Strap
Memory
Standard Memory:
128 MB
Flash Memory:
256 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Linerless
  • Black Mark
  • Gap
  • Roll Fed
  • Direct Thermal Label
  • Label
Media Sensor:
  • Transmissive Media Sensor
  • Label Taken Sensor
  • Reflective Media Sensor
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.60"
Maximum Label Width:
3.10"
Maximum Label Length:
32"
Label Core Size:
0.75"
Fonts & Emulation
Language Emulation:
  • CPCL
  • ZPL
  • EPL
  • XML
Power Description
Power Source:
Battery
Input Voltage:
7.4 V DC
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Portable
Height:
3.3"
Width:
4.6"
Depth:
6.8"
Weight (Approximate):
1.60 lb
Miscellaneous
Package Contents:
  • QLn320 Mobile Printer
  • Software & Drivers CD
  • Battery
Platform Supported:
PC
Certifications & Standards:
  • IP54
  • FCC Part 15, Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B
  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • CE
  • UL
  • TUV
  • CSA
  • IP43
  • IP54
  • Unicode
  • UTF-16
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0638272946254, 0783555099070, 0783555191606
UPC: 638272946254, 783555099070, 783555191606
EAN: 0638272946254, 0783555099070, 0783555191606
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra QN3-AU1A0M00-00 Portable Barcode Printer is also known as ZEB-QN3AU1A0M0000 or QN3-AU1A0M00-00.
