Zebra QN3-AU1A0E00-00 Portable Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

Earn up to $500 back on a new Zebra printer when you trade in any other printer.
Offer valid through December 31, 2017. Check eligibility and claim your rebate ›

Zebra QLn320 - 3 INCH, USB, Ethernet, 128MB/256MB, CPCL, LCD, DT, LINERED PLATEN, 3/4 INCH MEDIA CORE SIZE. Power supply (Part# P1031365-063) not included. See accessories.
Easier to use, easier to manage.

The Zebra QLn320 3-inch mobile printer heralds the introduction of the next generation of Zebra's terrifically popular QL product family. Offering dozens of advancements from the inside out, the QLn series is designed to be fully backwards compatible, yet easier to use and manage. It's ideal for use by retail and health care organizations - which compose the majority of the customers already using the previous-generation QL/QL Plus versions.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.90"
  • Recommended Use: Label Print
  • Features:
    • Lightweight
    • Drop Resistant
    • Real Time Clock
    • Mirror Printing
    • Tear Bar
    • Dust Resistant
    • Water Resistant
    • Label Odometer
    • Peel Facility
    • Hand Strap
    • Shoulder Strap
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • UCC 128
    • EAN 128
    • Code 128
    • Codabar
    • Interleaved 2 of 5
    • UPC-A
    • UPC-E
    • EAN-13
    • EAN-8
    • EAN-13 With 2 or 5 Digit Extension
    • EAN-8 With 2 or 5 Digit Extension
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • Micro PDF-417
    • GS1 DataBar
    • Aztec Code
    • Data Matrix
    • MSI
    • Plessey
    • FIM
    • POSTNET

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: QLn
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: QLn320
  • Product Name: QLn320 Mobile Printer

Physical Characteristics

  • Height: 3.3"
  • Width: 4.6"
  • Depth: 6.8"
  • Form Factor: Portable
  • Weight (Approximate): 1.60 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 3.13"
  • Maximum Label Length: 32"
  • Media Type:
    • Receipt
    • Label
    • Direct Thermal Label
    • Gap
    • Black Mark
    • Die-cut Label
    • Roll Fed
    • Fanfold
    • Black Bar
    • Linerless
    • Ticket
    • Continuous Form
    • Linered Media
  • Media Thickness: 6.50 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
    • Label Taken Sensor
  • Label Core Size: 1.38"
  • Maximum Roll Diameter: 0.75"

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • ZPL
    • EPL

Battery Information

  • Battery Included: Yes
  • Battery Rechargeable: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Standard Memory: 128 MB
  • Flash Memory: 256 MB

Display & Graphics

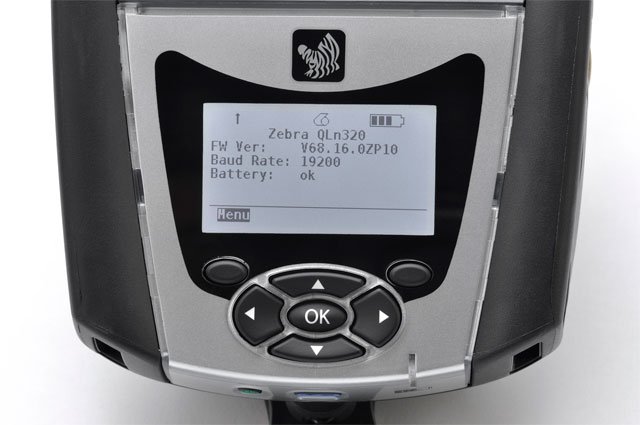

  • Display Screen Type: LCD

Other

  • Platform Supported: PC

Power Description

  • Power Source: Battery

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model QLn320
Print Resolution 203 dpi
Maximum Print Width 3.00
Max Roll Outer Diameter 2.6
Interface Options USB, Ethernet
Print Method Direct Thermal
Printer Type Mobile
Printer Mobility Mobile
Label Core 0.75
