Zebra Q4D-LUGC0000-00 Portable Barcode Printer

Zebra QN4-AUNA0E00-00 Portable Barcode Printer A newer version of this item is available.
It is replaced by the Zebra QN4-AUNA0E00-00 Portable Barcode Printer.
Zebra QL 420 Plus - QL 420 Plus Mobile Direct Thermal Printer (4 Inch Printhead, USB, 16MB RAM, 8MB Flash, LCD, ZPR 802.11b-g, Linered Platen, Label Present and Belt Clip). Power supply (Part# CC16614-G4) not included, see accessories.
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
USB, Wi-Fi
Print Resolution
203 dpi
  • Direct Thermal Printer provides you with all the features that you need to print quickly and easily
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Receipt Print gives dependable results with maximum productivity
  • Ideal to be used in field service, and in any application that has a need to print on the go
  • 4.12" maximum label width for dependable, desired results
  • Supports black bar media type for better reliance and maximum usability
  • Comes with 16 MB standard memory for timely printing with added reliability
  • LCD display is brighter with added efficiency, thinner, and feature better refresh rates
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

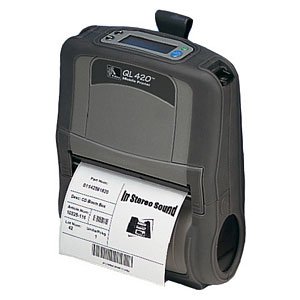

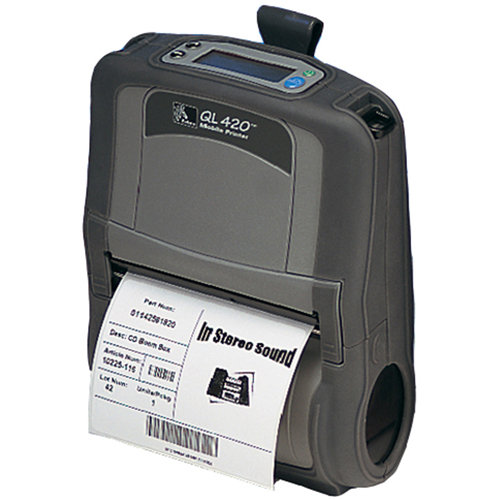

Zebra QL 420 Plus Portable Barcode Printer Model Overview
The updated QL 420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.
Zebra Q4D-LUGC0000-00 Portable Barcode Printer Overview

The QL 420 Plus direct thermal mobile printer delivers print widths up to 4.09" (103.9 mm). In addition to offering the rugged construction, user friendly options, and flexible QuickLink connectivity that have made Zebra's QL 420 and other QL series printers so popular, the enhanced QL 420 Plus printer is specially designed for complex mobile printing applications. It's built to handle increased levels of wireless security and to process complex labels up to four times faster, making it ideal for the secure transfer of sensitive data such as price lists, customer information, and medical records.

Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 128
  • Code 93
  • Code 39
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • MSI
  • Plessey
  • POSTNET
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • EAN 128
  • FIM
  • Maxi Code
  • PDF-417
  • Aztec Code
  • Data Matrix
  • QR Code
  • RSS
  • GS1 DataBar
Peel Facility:
Yes
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11g
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Bar
  • Die-cut Label
  • Fanfold
  • Linerless
  • Receipt
  • Roll Fed
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.63"
Maximum Label Width:
4.12"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • CPCL
  • EPL
  • XML
  • ZPL
Power Description
Input Voltage:
7.2 V DC
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Portable
Height:
7.5"
Width:
6"
Depth:
3"
Miscellaneous
Package Contents:
  • QL 420 Plus Receipt Printer
  • Battery
  • Belt Clip
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0682017480756, 0777787372025, 0778889970225
UPC: 682017480756, 777787372025, 778889970225
EAN: 0682017480756, 0777787372025, 0778889970225
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra Q4D-LUGC0000-00 Portable Barcode Printer is also known as ZEB-Q4D-LUGC0000-00 or Q4D-LUGC0000-00.
