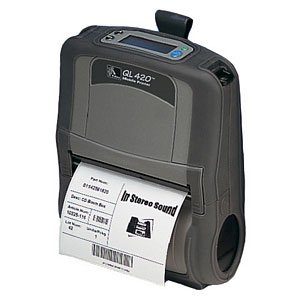

Zebra Q4D-LUGA0000-00 Portable Barcode Printer

Part Number: Q4D-LUGA0000-00
Model: QL 420 Plus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
USB, Wi-Fi
Print Resolution
203 dpi

Product Description:

  Mobile Printer, Direct Thermal printing, 203 dpi, 4" print width, 16MB RAM, 8MB Flash, USB, Wi-Fi(802.11b/g), Linered Platen, LCD, and Belt Clip. Power supply (Part# CC16614-G4) not included, see accessories.
Explore all Zebra QL 420 Plus Portable Barcode Printers
Add to Quote
Zebra Q4D-LUGA0000-00 Portable Barcode Printer
Zebra Q4D-LUGA0000-00 Portable Barcode Printer
Zebra Q4D-LUGA0000-00 Portable Barcode Printer
Zebra Q4D-LUGA0000-00 Portable Barcode Printer Zebra Q4D-LUGA0000-00 Portable Barcode Printer

Full specifications (PDF)

Zebra QL 420 Plus Portable Barcode Printer Model Overview

The updated QL 420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.
Zebra Q4D-LUGA0000-00 Portable Barcode Printer Overview

The QL 420 Plus direct thermal mobile printer delivers print widths up to 4.09" (103.9 mm). In addition to offering the rugged construction, user-friendly options, and flexible QuickLink connectivity that have made Zebra's QL 420 and other QL series printers so popular, the enhanced QL 420 Plus printer is specially designed for complex mobile printing applications. It's built to handle increased levels of wireless security and to process complex labels up to four times faster, making it ideal for the secure transfer of sensitive data such as price lists, customer information, and medical records.

The QL 420 Plus is ideal for many applications, including pick tickets, forklift-mounted printing, customer pickup, shipment labeling, inventory updates, meter reading receipts, delivery verification invoices, and gas and utility inspection documentation.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • MSI
  • POSTNET
  • Plessey
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • EAN-18
  • FIM
  • Maxi Code
  • PDF-417
  • Aztec Code
  • Data Matrix
  • QR Code
  • RSS
  • GS1 DataBar
Peel Facility:
Yes
Features:
Belt Clip
Print Technology:
Direct Thermal
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Receipt
  • Roll Fed
  • Die-cut Label
  • Linerless
  • Fanfold
  • Black Bar
Media Size:
Custom Size
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.63"
Maximum Label Width:
4.12"
Maximum Label Length:
32"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • CCPL
  • ZPL
  • EPL II
  • XML
  • EPL
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
4200 mAh
Physical Characteristics
Form Factor:
Portable
Height:
7.5"
Width:
6"
Depth:
3"
Miscellaneous
Package Contents:
  • QL 420Plus Label Printer
  • Battery
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0632591900805
UPC: 632591900805
EAN: 0632591900805
UNSPSC: 45101512
