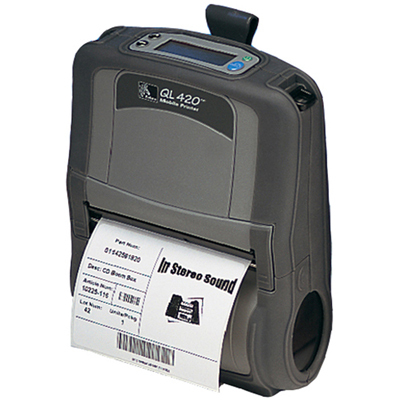

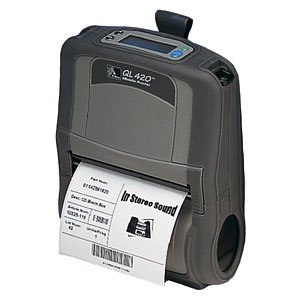

Zebra Q4D-LUBD0000-00 Portable Barcode Printer

Zebra QL 420 Plus Portable Barcode Printer Model Overview

The updated QL 420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.

Zebra Q4D-LUBD0000-00 Portable Barcode Printer Overview

The QL 420 Plus direct thermal mobile printer delivers print widths up to 4.09" (103.9 mm). In addition to offering the rugged construction, user-friendly options, and flexible QuickLink connectivity that have made Zebra's QL 420 and other QL series printers so popular, the enhanced QL 420 Plus printer is specially designed for complex mobile printing applications. It's built to handle increased levels of wireless security and to process complex labels up to four times faster, making it ideal for the secure transfer of sensitive data such as price lists, customer information, and medical records.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 128
Code 39
Code 93
EAN-8
EAN-13
Interleaved 2 of 5
MSI
Plessey
POSTNET
UCC/EAN 128
UPC-A
UPC-E
FIM
EAN-18
Maxi Code
PDF-417
Aztec Code
Data Matrix
QR Code
RSS
GS1 DataBar

Print Technology:

Direct Thermal

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Bluetooth:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Linerless
Roll Fed
Die-cut Label
Receipt
Fanfold
Black Bar

Media Sensor:

Label Taken Sensor

Media Thickness:

6.50 mil

Maximum Roll Diameter:

2.63"

Maximum Label Width:

4.12"

Label Core Size:

0.75"

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL
XML
EPL2

Power Description

Power Source:

Battery

Input Voltage:

7.2 V DC

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Rechargeable:

Yes

Physical Characteristics

Form Factor:

Portable

Height:

7.5"

Width:

6"

Depth:

3"

Weight (Approximate):

2 lb

Miscellaneous

Package Contents:

QL 420 Plus Label Printer
Belt Clip

Platform Supported:

PC

Certifications & Standards:

FCC and CE Class B compliance
Design certified by CSA
CB Scheme report
NOM certified
C-Tick clearance

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0610728925655

UPC: 610728925655

EAN: 0610728925655

UNSPSC: 45101512
