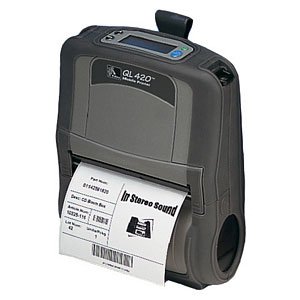

Zebra Q4D-LU1A0000-GA Portable Barcode Printer

Part Number: Q4D-LU1A0000-GA
Model: QL 420 Plus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Mobile
Printing Technology
Direct Thermal
Print Resolution
203 dpi
Max Print Width
4 inch

Product Description:

  Mobile Direct thermal Printer (4 inch Printhead, USB, 16MB RAM, 8MB Flash, LCD, Cable Ready, Linered Platen and Belt Clip). Power supply (Part# CC16614-G4) not included. See accessories. This is the TAA compliant version of this product for government purchasers. Please call for more information.
Explore all Zebra QL 420 Plus Portable Barcode Printers
Add to Quote
Zebra Q4D-LU1A0000-GA Portable Barcode Printer
Zebra Q4D-LU1A0000-GA Portable Barcode Printer
Zebra Q4D-LU1A0000-GA Portable Barcode Printer
Zebra Q4D-LU1A0000-GA Portable Barcode Printer Zebra Q4D-LU1A0000-GA Portable Barcode Printer

Full specifications (PDF)

Zebra QL 420 Plus Portable Barcode Printer Model Overview

The updated QL 420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.
Zebra Q4D-LU1A0000-GA Portable Barcode Printer Overview

Bring the flexibility of wireless printin.g to your 102mm (4") label or receipt applications with Zebra's QL 420 Plus mobile printer. Ruggedly built to survive the rigours of warehousing, distribution and field-force applications, the QL 420 Plus offers a mobile mount option to allow printing in a forklift or vehicle.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
20"
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 93
  • Code 39
  • Data Matrix
  • Interleaved 2 of 5
  • FIM
  • FIM Postnet
  • UPC-A
  • UPC-E
  • 2D
  • QR Code
  • EAN-8
  • EAN-13
  • MSI
  • MSI PLESSEY
  • 2 and 5 Digits Add-on
  • UCC/EAN 128
  • Composite Symbology
  • RSS
Application/Usage:
  • Mobile
  • Retail
  • Healthcare
  • Manufacturing
  • Mailing & Shipping
  • Distribution Center
  • Pharmacy
  • Warehouse
  • Government
Features:
  • Rugged
  • Belt Clip
  • Water Resistant
  • Cable Ready
  • Clamshell Design
Ingress Protection (IP) Rating:
IP14
Connectivity Technology:
Wireless
Fonts Included:
  • Standard fonts
  • 25 bitmapped
  • 1 smooth-scalable
Print Technology:
Direct Thermal
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
USB Standard:
USB 2.0
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11g
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Roll Fed
  • Die-cut Label
  • Linerless
  • Receipt
  • Fanfold
  • Linered Platen
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.60"
Maximum Label Width:
4.12"
Power Description
Power Source:
Battery
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Environmental Conditions
Operating Temperature:
5°F (-15°C) - 122°F (50°C)
Storage Temperature:
-13°F (-25°C) - 158°F (70°C)
Physical Characteristics
Form Factor:
Portable
Height:
7.5"
Width:
6"
Depth:
3"
Weight (Approximate):
2 lb
Miscellaneous
TAA Compliant:
Yes
Item Numbers
UNSPSC: 45101512
