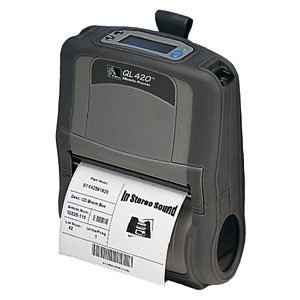

Zebra Q4D-LU1A0000-00 Portable Barcode Printer

A newer version of this item is available.
It is replaced by the Zebra QN4-AUCA0E00-00 Portable Barcode Printer.

Zebra QL 420 Plus - Mobile Direct Thermal Printer (4 Inch Printhead, USB, 16MB RAM, 8MB Flash, LCD, Cable Ready, Linered Platen and Belt Clip). Power supply (Part# CC16614-G4) not included, see accessories.

Printer Type

Mobile

Printing Technology

Direct Thermal

Interface Options

Serial (RS-232), USB

Print Resolution

203 dpi

Max Print Width

4 inch

Direct Thermal Printer provides high-quality label/receipt printing with maximum dependability
203 maximum print resolution (dpi) for your convenience and easy usage
Monochrome print color capability for rich in detail, sharp, and clear printing results
Delivers high-speed, hassle-free labeling solution for your business needs
Carry your printer with you anywhere with its lightweight design
4.12" maximum label width for dependable, desired results
Supports roll fed media type for maximum feasibility and better accommodation of your requirements
Comes with 16 MB standard memory for timely printing with added reliability

Need a different version? See all Zebra QL 420 Plus Portable Barcode Printers

Discontinued See Replacement

Add to Quote

Zebra Q4D-LU1A0000-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra QL 420 Plus Portable Barcode Printer Model Overview

The updated QL 420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.

Zebra Q4D-LU1A0000-00 Portable Barcode Printer Overview

The QL 420 Plus direct thermal mobile printer delivers print widths up to 4.09" . In addition to offering the rugged construction, user friendly options, and flexible QuickLink connectivity. The QL 420 Plus printer is specially designed for complex mobile printing applications. It is ideal for the secure transfer of sensitive data such as price lists, customer information, and medical records. QL 420 Plus is ideal for many applications, including pick tickets, forklift mounted printing, customer pickup, shipment labeling, inventory updates, meter reading receipts, delivery verification invoices, and gas and utility inspection documentation.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 128
Code 93
Code 39
EAN-13
EAN-8
Interleaved 2 of 5
MSI
Plessey
POSTNET
UCC/EAN 128
UPC-A
UPC-E
EAN-18
FIM
Maxi Code
PDF-417
Aztec Code
Data Matrix
QR Code
RSS
GS1 DataBar

Peel Facility:

Yes

Features:

Belt Clip
LCD Display

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

USB:

Yes

Media Types & Handling

Media Type:

Roll Fed
Die-cut Label
Linerless
Receipt
Fanfold
Black Bar

Media Thickness:

6.50 mil

Maximum Roll Diameter:

2.63"

Maximum Label Width:

4.12"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
ZPL
EPL II
XML
EPL

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

4200000 mAh

Physical Characteristics

Form Factor:

Portable

Height:

7.5"

Width:

Depth:

Miscellaneous

Package Contents:

QL 420 Plus Thermal Label Printer
Battery

Additional Information:

Present Mode
Media Handling : Direct Thermal/Linered Platen
Open access design and center locking media loading
Rubber infused plastic over mold design for tough conditions
Backward compatible with Encore and Cameo media and cables
Character Set : US/Canadian English/Latin 1 & 5 (Including Turkish)
Grouping "0": (US/Canada/Australia/New Zealand/ Mexico/Nicaragua)

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0686366664843

UPC: 686366664843

EAN: 0686366664843

UNSPSC: 45101512

Q&A

Questions? Get help from a
Printer Expert!

The Zebra Q4D-LU1A0000-00 Portable Barcode Printer is also known as ZEB-Q4D-LU1A0000-00 or Q4D-LU1A0000-00.
