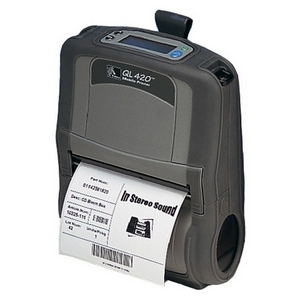

Zebra Q4C-LUKA0000-00 Portable Barcode Printer

Zebra QL 420 Plus Portable Barcode Printer Model Overview

The updated QL 420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.

Zebra Q4C-LUKA0000-00 Portable Barcode Printer Overview

The QL 420 Plus Mobile Label Printer is ideal for many applications, including pick tickets, forklift-mounted printing, customer pickup, shipment labeling, inventory updates, meter reading receipts, delivery verification invoices, and gas and utility inspection documentation. QL 420 Plus printer is specially designed for complex mobile printing applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 128
Code 93
Code 39
EAN-13
EAN-8
Interleaved 2 of 5
MSI
Plessey
POSTNET
UCC/EAN 128
UPC-A
UPC-E
EAN-18
FIM
Maxi Code
PDF-417

Peel Facility:

Yes

Application/Usage:

Mobile

Features:

Belt Clip

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

8 MB

Flash Memory:

4 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Roll Fed
Die-cut Label
Linerless
Receipt
Fanfold
Label
Continuous Form

Media Size:

Custom Size - 4.20"
4.10"

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

6.50 mil

Maximum Roll Diameter:

2.63"

Maximum Label Width:

4.12"

Maximum Label Length:

20"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

ZPL
EPL
ICPL

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

4200 mAh

Physical Characteristics

Form Factor:

Portable

Height:

7.5"

Width:

6"

Depth:

3"

Miscellaneous

Package Contents:

QL 420 Plus Mobile Label Printer
Lithium Ion Battery

Additional Information:

Connectivity: Zebra Value Radio
Media Sensors: Transmissive and Reflective
Media handling: Direct Thermal/ Linered Platen
Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
Grouping "0": (US/ Canada/ /Australia/New Zealand/ Mexico/ Nicaragua)

Platform Supported:

PC

Certifications & Standards:

FCC Class B
CE Class B
CSA
CB
NOM
C-Tick

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108
