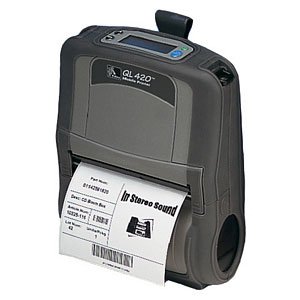

Zebra Q4C-LUFA0000-00 Portable Barcode Printer

Part Number: Q4C-LUFA0000-00
Model: QL 420 Plus
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Wi-Fi
Print Resolution
203 dpi

Product Description:

  Direct thermal, 4 inch print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, LCD, Zebra Value Radio 802.11b, Linered Platen and Beltclip. Power supply (Part# CC16614-G4) not included, see accessories.
Explore all Zebra QL 420 Plus Portable Barcode Printers
Add to Quote
Zebra Q4C-LUFA0000-00 Portable Barcode Printer
Zebra Q4C-LUFA0000-00 Portable Barcode Printer
Zebra Q4C-LUFA0000-00 Portable Barcode Printer
Zebra Q4C-LUFA0000-00 Portable Barcode Printer Zebra Q4C-LUFA0000-00 Portable Barcode Printer

Full specifications (PDF)

Zebra QL 420 Plus Portable Barcode Printer Model Overview

The updated QL 420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.
Zebra Q4C-LUFA0000-00 Portable Barcode Printer Overview

The QL 420 Plus Mobile Label Printer is ideal for many applications, including pick tickets, forklift-mounted printing, customer pickup, shipment labeling, inventory updates, meter reading receipts, delivery verification invoices, and gas and utility inspection documentation. QL 420 Plus printer is specially designed for complex mobile printing applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 128
  • Code 93
  • Code 39
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • MSI
  • Plessey
  • POSTNET
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • EAN-18
  • FIM
  • Maxi Code
  • PDF-417
Application/Usage:
Mobile
Features:
Belt Clip
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Flash Memory:
4 MB
Interfaces/Ports
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Linerless
  • Receipt
  • Fanfold
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.60"
Maximum Label Width:
4.12"
Maximum Label Length:
20"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • ZPL
  • EPL
  • ICPL
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
4200 mAh
Physical Characteristics
Form Factor:
Portable
Height:
7.5"
Width:
6"
Depth:
3"
Miscellaneous
Package Contents:
  • QL 420 Plus Mobile Label Printer
  • Lithium Ion Battery
Additional Information:
  • Media Sensors: Transmissive & Reflective
  • Media handling: Direct Thermal/ Linered Platen
  • Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
  • QuickLink module: Zebra Value Radio, 802.11b
Platform Supported:
PC
Certifications & Standards:
  • FCC Class B
  • CE Class B
  • CSA
  • CB
  • NOM
  • C-Tick
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
