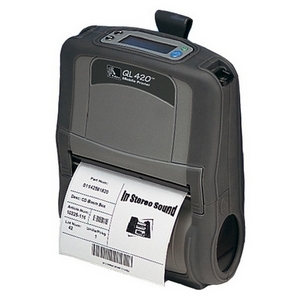

Zebra Q4C-LUBA0000-00 Portable Barcode Printer

Zebra Q4D-LUBA0000-00 Portable Barcode Printer A newer version of this item is available.
It is replaced by the Zebra Q4D-LUBA0000-00 Portable Barcode Printer.
Zebra QL 420 Plus - Direct thermal, 4 inch print width, 8MB RAM, 4MB Flash, CPCL, EPL/ZPL Support, LCD, Bluetooth, Linered Platen and Belt Clip. Power supply (Part# CC16614-G4) not included, see accessories.
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Bluetooth
Print Resolution
203 dpi
Max Print Width
4 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Bring convenience, value, and feature to any mobile environment
  • 4.12" maximum label width for your convenience and feasible usability
  • 20" maximum label length for your convenience and feasible usability
  • Supports roll fed media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal/Thermal Transfer Printer with mobile application/usage provides dependable printing solution with added productivity
  • Belt Clip feature for maximum efficiency and convenience
Read More

Need a different version? See all Zebra QL 420 Plus Portable Barcode Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra Q4C-LUBA0000-00 Portable Barcode Printer
Zebra Q4C-LUBA0000-00 Portable Barcode Printer Zebra Q4C-LUBA0000-00 Portable Barcode Printer Zebra Q4C-LUBA0000-00 Portable Barcode Printer
Zebra Q4C-LUBA0000-00 Portable Barcode Printer
Zebra Q4C-LUBA0000-00 Portable Barcode Printer

Full specifications (PDF)
Zebra QL 420 Plus Portable Barcode Printer Model Overview
The updated QL 420 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.
Zebra Q4C-LUBA0000-00 Portable Barcode Printer Overview

The QL 420 Plus Mobile Label Printer is ideal for many applications, including pick tickets, forklift-mounted printing, customer pickup, shipment labeling, inventory updates, meter reading receipts, delivery verification invoices, and gas and utility inspection documentation. QL 420 Plus printer is specially designed for complex mobile printing applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 128
  • Code 93
  • Code 39
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • MSI
  • Plessey
  • POSTNET
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • EAN-18
  • FIM
  • Maxi Code
  • PDF-417
Peel Facility:
Yes
Application/Usage:
Mobile
Features:
Belt Clip
Memory
Standard Memory:
8 MB
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Linerless
  • Receipt
  • Fanfold
  • Label
  • Continuous Form
Media Size:
  • Custom Size - 4.20"
  • 4.10"
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.60"
Maximum Label Width:
4.12"
Maximum Label Length:
20"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • ZPL
  • EPL
  • ICPL
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
4200 mAh
Physical Characteristics
Form Factor:
Portable
Height:
7.5"
Width:
6"
Depth:
3"
Miscellaneous
Package Contents:
  • QL 420 Plus Mobile Label Printer
  • Lithium Ion Battery
Additional Information:
  • Media Sensors: Transmissive and Reflective
  • Media handling: Direct Thermal/ Linered Platen
  • Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
  • Grouping "0": (US/ Canada/ /Australia/New Zealand/ Mexico/ Nicaragua)
Platform Supported:
PC
Certifications & Standards:
  • FCC Class B
  • CE Class B
  • CSA
  • CB
  • NOM
  • C-Tick
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra Q4C-LUBA0000-00 Portable Barcode Printer is also known as ZEB-Q4C-LUBA0000-00 or Q4C-LUBA0000-00.
