Zebra Q3D-LUBA0000-00 Portable Barcode Printer

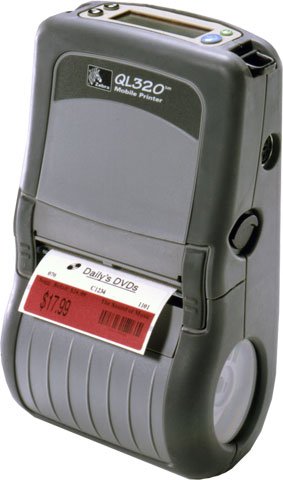

Zebra QL320 Plus Portable Barcode Printer Model Overview

The updated QL320 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.

Zebra Q3D-LUBA0000-00 Portable Barcode Printer Overview

QL 320 Plus direct thermal mobile printer delivers print widths up to 2.9". In addition to offering the rugged construction, user friendly options, and flexible QuickLink connectivity that have made Zebra's QL 320 so popular, the enhanced QL 320 Plus printer is specially designed for complex mobile printing applications. It's built to handle increased levels of wireless security and to process complex labels up to four times faster, making it ideal for the secure transfer of sensitive data such as price lists, customer information, and medical records.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

2.90"

Barcode Symbology Supported:

Codabar
Code 128
Code 39
Code 93
EAN-13
EAN-8
Interleaved 2 of 5
MSI
Plessey
POSTNET
UCC/EAN 128
UPC-A
UPC-E
EAN-18
FIM
Maxi Code
PDF-417
Aztec Code
Data Matrix
QR Code
RSS
GS1 DataBar

Peel Facility:

Yes

Features:

Belt Clip

Print Technology:

Direct Thermal

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Bluetooth:

Yes

Media Types & Handling

Media Type:

Die-cut Label
Roll Fed
Receipt
Linerless
Black Bar
Black Mark

Media Thickness:

6.50 mil

Maximum Roll Diameter:

2.63"

Maximum Label Width:

3.12"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CCPL
EPL
ZPL
XML
EPL II

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

2100 mAh

Physical Characteristics

Form Factor:

Portable

Height:

8"

Width:

4.6"

Depth:

3.1"

Miscellaneous

Package Contents:

QL 320 Plus Network Thermal Label Printer
Battery

Additional Information:

Present Mode
Media Handling : Direct Thermal/Linered Platen
Open access design and center locking media loading
Rubber infused plastic over mold design for tough conditions
Backward compatible with Encore and Cameo media and cables
Character Set : US/Canadian English/Latin 1 & 5 (Including Turkish)
Grouping "0": (US/Canada/Australia/New Zealand/ Mexico/Nicaragua)

Platform Supported:

PC

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0807027543448

UPC: 807027543448

EAN: 0807027543448

UNSPSC: 45101512
