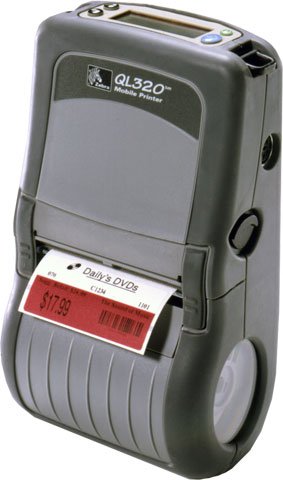

Zebra Q3C-LUKA0000-00 Portable Barcode Printer

Zebra QL320 Plus Portable Barcode Printer Model Overview

The updated QL320 Plus direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.

Zebra Q3C-LUKA0000-00 Portable Barcode Printer Overview

The QL 320 Plus Mobile Label Printer is well-suited for numerous applications, including pallet labeling, production identification, work-in-process tickets, price marking, shelf labeling, and inter-store transfers. QL 320 Plus Mobile Label Printer is specially designed for complex mobile printing applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

2.90"

Barcode Symbology Supported:

Codabar
Code 128
Code 39
Code 93
EAN-13
EAN-8
Interleaved 2 of 5
MSI
Plessey
POSTNET
UCC/EAN 128
UPC-A
UPC-E
EAN-18
FIM
Maxi Code
PDF-417

Peel Facility:

Yes

Application/Usage:

Mobile

Features:

Belt Clip

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

8 MB

Flash Memory:

4 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Die-cut Label
Roll Fed
Receipt
Linerless
Black Bar
Black Mark
Label
Continuous Form

Media Size:

Custom Size - 3.12"
3.10"

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

6.50 mil

Maximum Roll Diameter:

2.63"

Maximum Label Width:

3.12"

Maximum Label Length:

16"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

2100 mAh

Physical Characteristics

Form Factor:

Portable

Height:

8"

Width:

4.6"

Depth:

3.1"

Miscellaneous

Package Contents:

QL 320 Plus Mobile Label Printer
Lithium Ion Battery

Additional Information:

QuickLink module: Zebra Value Radio
Media sensors: Reflective and Transmissive
Media Handling:Direct Thermal/ Linered Platen
Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
Grouping "0": (US/ Canada/ /Australia/New Zealand/ Mexico/ Nicaragua)

Platform Supported:

PC

Certifications & Standards:

FCC Class B
CE Class B
CSA
CB
NOM
C-Tick

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108
