Zebra Q2D-LUBD0000-00 Portable Barcode Printer

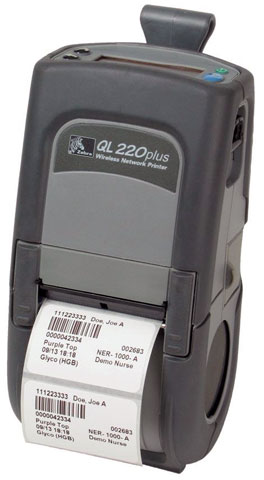

Zebra QL220 Plus Portable Barcode Printer Model Overview

At 1.04 lbs, the lightweight QL220 Plus is the smallest network addressable printer available. This 2-inch direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. To keep your business moving, it provides many user-friendly options such as center-loading media, smart battery monitoring, and an optional LCD. The QL220 Plus is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery and verification, and for mobile point-of-sale anywhere space is at a premium. The QL220 Plus's QuickLink modules, with Bluetooth or 802.11b radios, offer the flexibility to adjust to a wide range of connectivity needs.

Zebra Q2D-LUBD0000-00 Portable Barcode Printer Overview

The durable QL 220 Plus thermal printers can survive everything from warehouse floors to parking lots. The QL 220 Plus printers has been designed with the most advanced technology in rubberized over molding to maintain robust construction and minimal weight. With centerloading media, battery monitoring and an LCD, these printers provide user friendly features to keep your business moving.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

1.89"

Barcode Symbology Supported:

Code 39
Code 93
Code 128
Codabar
Interleaved 2 of 5
FIM
POSTNET
UPC-A
UPC-E
UPC-A with 2 or 5 Digit Extension
UPC-E with 2 or 5 Digit Extension
EAN-8
EAN-13
MSI
Plessey
UCC/EAN 128
Aztec Code
Data Matrix
GS1 DataBar
RSS
Maxi Code
PDF-417
QR Code
Planet Code

Peel Facility:

Yes

Features:

LCD Display
Belt Clip

Print Technology:

Direct Thermal

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Bluetooth:

Yes

Media Types & Handling

Media Type:

Label
Receipt
Roll Fed
Die-cut Label
Linerless
Fanfold

Media Thickness:

6.50 mil

Maximum Roll Diameter:

2.20"

Maximum Label Width:

2.18"

Maximum Label Length:

32"

Label Core Size:

1.37"

Fonts & Emulation

Language Emulation:

ZPL
EPL
XML
EPL2
CPCL

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

2100 mAh

Physical Characteristics

Form Factor:

Portable

Height:

7.2"

Width:

3.6"

Depth:

3"

Miscellaneous

Package Contents:

QL 220 Plus Thermal Label Printer
Battery

Additional Information:

Media Loading
Linerless Platen
32-bit processor
Label Present Sensor
Battery monitoring via a battery low indicator light
OpenACCESS design and center locking
Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
Rubber-infused plastic over-mold design for tough conditions
Regional Grouping Codes: Grouping "0": (US/Canada/Australia/New Zealand/ Mexico/Nicaragua)

Platform Supported:

PC

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 45101512
