Zebra Q2D-LUBA0000-00 Portable Barcode Printer

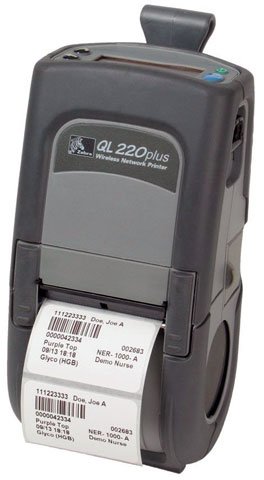

Zebra QL220 Plus Portable Barcode Printer Model Overview

At 1.04 lbs, the lightweight QL220 Plus is the smallest network addressable printer available. This 2-inch direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. To keep your business moving, it provides many user-friendly options such as center-loading media, smart battery monitoring, and an optional LCD. The QL220 Plus is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery and verification, and for mobile point-of-sale anywhere space is at a premium. The QL220 Plus's QuickLink modules, with Bluetooth or 802.11b radios, offer the flexibility to adjust to a wide range of connectivity needs.

Zebra Q2D-LUBA0000-00 Portable Barcode Printer Overview

The compact, lightweight QL 220 Plus direct thermal mobile printer delivers print widths up to 1.89". In addition to offering the rugged construction, user friendly options, and flexible QuickLink connectivity that have made Zebra's QL 220 printer so popular, the enhanced QL 220 Plus printer is specially designed for complex mobile printing applications. It's built to handle increased levels of wireless security and to process complex labels up to four times faster, making it ideal for the secure transfer of sensitive data such as price lists, customer information, and medical records.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

1.89"

Barcode Symbology Supported:

Codabar
Code 128
Code 93
Code 39
EAN-8 With 2 or 5 Digit Extension
EAN-13 With 2 or 5 Digit Extension
Interleaved 2 of 5
POSTNET
Plessey
UCC/EAN 128
FIM
UPC-A with 2 or 5 Digit Extension
UPC-E with 2 or 5 Digit Extension
PDF-417
Maxi Code
Data Matrix
RSS
GS1 DataBar
QR Code
Aztec Code

Peel Facility:

Yes

Features:

Belt Clip

Print Technology:

Direct Thermal

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Bluetooth:

Yes

Media Types & Handling

Media Type:

Roll Fed
Die-cut Label
Linerless
Receipt

Media Thickness:

6.50 mil

Maximum Roll Diameter:

2.20"

Maximum Label Width:

2.18"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL
EPL II

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

2100 mAh

Physical Characteristics

Form Factor:

Portable

Height:

7.2"

Width:

3.6"

Depth:

3"

Miscellaneous

Package Contents:

QL 220 Plus Network Thermal Label Printer
Battery

Additional Information:

Present Mode
32 bit High Speed Processor
Media Handling : Direct Thermal/Linered Platen
Open access design and center locking media loading
Rubber infused plastic over mold design for tough conditions
Backward compatible with Encore and Cameo media and cables
Character Set : US/Canadian English/Latin 1 & 5 (Including Turkish)
Grouping "0": (US/Canada/Australia/New Zealand/ Mexico/Nicaragua)

Platform Supported:

PC

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0807027543479

UPC: 807027543479

EAN: 0807027543479

UNSPSC: 45101512
