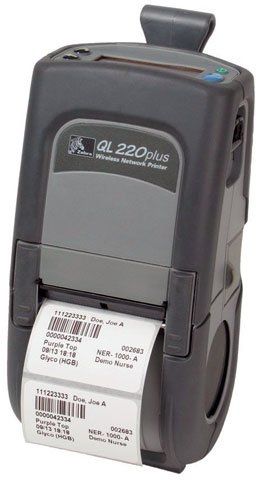

Zebra Q2C-LUKC0000-00 Portable Barcode Printer

Zebra QL220 Plus Portable Barcode Printer Model Overview

At 1.04 lbs, the lightweight QL220 Plus is the smallest network addressable printer available. This 2-inch direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. To keep your business moving, it provides many user-friendly options such as center-loading media, smart battery monitoring, and an optional LCD. The QL220 Plus is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery and verification, and for mobile point-of-sale anywhere space is at a premium. The QL220 Plus's QuickLink modules, with Bluetooth or 802.11b radios, offer the flexibility to adjust to a wide range of connectivity needs.

Zebra Q2C-LUKC0000-00 Portable Barcode Printer Overview

The compact, lightweight QL 220 Plus in addition to offering the rugged construction, user friendly options, and flexible QuickLink connectivity that have made QL 220 so popular, the enhanced QL 220 Plus printer is specially designed for complex mobile printing applications. It is built to handle increased levels of wireless security and to process complex labels up to four times faster, making it ideal for the secure transfer of sensitive data such as price lists, customer information, and medical records.

The QL 220 Plus Mobile Label Printer is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery an verification, and for mobile point of sale at boutique stores where space is at a premium.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

1.89"

Barcode Symbology Supported:

Codabar
Code 128
Code 93
Code 39
EAN-13 With 2 or 5 Digit Extension
EAN-8 With 2 or 5 Digit Extension
Interleaved 2 of 5
POSTNET
Plessey
UCC/EAN 128
FIM
UPC-A with 2 or 5 Digit Extension
UPC-E with 2 or 5 Digit Extension
PDF-417
Maxi Code
Data Matrix
RSS
QR Code
Aztec Code

Peel Facility:

Yes

Application/Usage:

Mobile

Features:

Belt Clip

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

8 MB

Memory Technology:

SRAM

Flash Memory:

4 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Media Types & Handling

Media Type:

Roll Fed
Die-cut Label
Linerless
Receipt

Media Sensor:

Transmissive Media Sensor
Reflective Media Sensor

Maximum Roll Diameter:

2.20"

Maximum Label Width:

2.18"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL
XML

Power Description

Input Voltage:

7.4 V DC

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

2100 mAh

Physical Characteristics

Form Factor:

Portable

Height:

7.2"

Width:

3.6"

Depth:

3"

Miscellaneous

Package Contents:

QL 220 Plus Mobile Label Printer
Battery
Belt Clip

Additional Information:

Present Mode
Media sensors: Reflective and Transmissive
Open access design and center locking media loading
Rubber infused plastic over-mold design for tough conditions
Character Set: US/Canadian English/Latin 1 & 5 (Including Turkish)
Media Handling: Direct Thermal/ Linered Platen/ Label Present
Grouping O: (US/ Canada/ /Australia/New Zealand/ Mexico/ Nicaragua)

Platform Supported:

PC

Certifications & Standards:

RoHS
FCC and CE Class B compliance
Design certified by CSA
CB Scheme report
NOM certified
C-Tick clearance

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108
