Zebra Q2C-LUFAV000-00 Portable Barcode Printer

Zebra Q2C-LUFA0000-00 Portable Barcode Printer A newer version of this item is available.
It is replaced by the Zebra Q2C-LUFA0000-00 Portable Barcode Printer.
Zebra QL220 Plus - Direct Thermal Printer, Mobile, 203DPI, 8MB RAM 4MB, LCD, 802.11b VALUE RADIO. Power supply (Part# CC16614-G4) not included, see accessories.
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Wi-Fi
Print Resolution
203 dpi
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Label Print gives dependable results with maximum productivity
  • Ideal to be used in field service, and in any application that has a need to print on the go
  • Enjoy the freedom of wireless connectivity. With Wi-Fi, you will get things done faster.
  • 2.18" maximum label width to easily accommodate your needs with added productivity
  • 32" maximum label length to easily accommodate your needs with added productivity
  • Supports roll fed media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal/Thermal Transfer Printer with mobile application/usage provides dependable printing solution with added productivity
Read More

Need a different version? See all Zebra QL220 Plus Portable Barcode Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra Q2C-LUFAV000-00 Portable Barcode Printer
Zebra Q2C-LUFAV000-00 Portable Barcode Printer Zebra Q2C-LUFAV000-00 Portable Barcode Printer Zebra Q2C-LUFAV000-00 Portable Barcode Printer
Zebra Q2C-LUFAV000-00 Portable Barcode Printer
Zebra Q2C-LUFAV000-00 Portable Barcode Printer

Full specifications (PDF)
Zebra QL220 Plus Portable Barcode Printer Model Overview

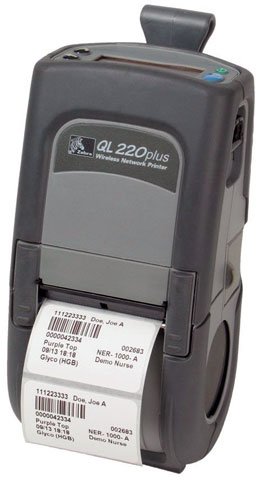

At 1.04 lbs, the lightweight QL220 Plus is the smallest network addressable printer available. This 2-inch direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. To keep your business moving, it provides many user-friendly options such as center-loading media, smart battery monitoring, and an optional LCD. The QL220 Plus is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery and verification, and for mobile point-of-sale anywhere space is at a premium. The QL220 Plus's QuickLink modules, with Bluetooth or 802.11b radios, offer the flexibility to adjust to a wide range of connectivity needs.
Zebra Q2C-LUFAV000-00 Portable Barcode Printer Overview

The compact, lightweight QL 220 Plus direct thermal mobile printer delivers print widths up to 1.89" (48 mm). In addition to offering the rugged construction, user-friendly options, and flexible QuickLink connectivity that have made Zebra's QL 220 and other QL series printers so popular, the enhanced QL 220 Plus printer is specially designed for complex mobile printing applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
1.89"
Barcode Symbology Supported:
  • Codabar
  • Code 128
  • Code 93
  • Code 39
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • Interleaved 2 of 5
  • POSTNET
  • Plessey
  • UCC/EAN 128
  • FIM
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • PDF-417
  • Maxi Code
  • Data Matrix
  • RSS
  • QR Code
Peel Facility:
Yes
Application/Usage:
Mobile
Features:
Belt Clip
Memory
Standard Memory:
8 MB
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Linerless
  • Receipt
  • Label
  • Continuous Form
Media Size:
  • Custom Size - 2.15"
  • 2.16"
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.20"
Maximum Label Width:
2.18"
Maximum Label Length:
32"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • CPCL
  • EPL
  • ZPL
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
2100 mAh
Physical Characteristics
Form Factor:
Portable
Height:
7.2"
Width:
3.6"
Depth:
3"
Miscellaneous
Package Contents:
  • QL 220 Plus Mobile Label Printer
  • Lithium Ion Battery
Additional Information:
  • QuickLink module: Zebra Value Radio
  • Media sensors: Reflective and Transmissive
  • Media Handling: Direct Thermal/ Linered Platen
  • Ancillary Items: VAR (adds UMAN/accessories cd)
  • Rubber infused plastic over-mold design for tough conditions
  • Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
Platform Supported:
PC
Certifications & Standards:
  • FCC Class B
  • CE Class B
  • CSA
  • CB
  • NOM
  • C-Tick
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
