Zebra Q2C-LUFA0000-00 Portable Barcode Printer

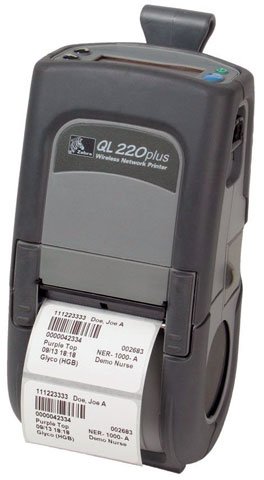

Zebra QL220 Plus Portable Barcode Printer Model Overview

At 1.04 lbs, the lightweight QL220 Plus is the smallest network addressable printer available. This 2-inch direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. To keep your business moving, it provides many user-friendly options such as center-loading media, smart battery monitoring, and an optional LCD. The QL220 Plus is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery and verification, and for mobile point-of-sale anywhere space is at a premium. The QL220 Plus's QuickLink modules, with Bluetooth or 802.11b radios, offer the flexibility to adjust to a wide range of connectivity needs.

Zebra Q2C-LUFA0000-00 Portable Barcode Printer Overview

QL 220 Plus Mobile Label Printer is specially designed for complex mobile printing applications. It has Cable ready.The QL 220 Plus Mobile Label Printer is ideal for many applications, including price marking, shelf labeling, inter-store transfers, direct store vendor delivery an verification, and for mobile point of sale at boutique stores where space is at a premium.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

1.89"

Barcode Symbology Supported:

Codabar
Code 128
Code 93
Code 39
EAN-13 With 2 or 5 Digit Extension
EAN-8 With 2 or 5 Digit Extension
Interleaved 2 of 5
POSTNET
Plessey
UCC/EAN 128
FIM
UPC-A with 2 or 5 Digit Extension
UPC-E with 2 or 5 Digit Extension
PDF-417
Maxi Code
Data Matrix
RSS
QR Code

Peel Facility:

Yes

Application/Usage:

Mobile

Features:

Belt Clip

Print Technology:

Direct Thermal /Thermal Transfer

Memory

Standard Memory:

8 MB

Flash Memory:

4 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Media Types & Handling

Media Type:

Roll Fed
Die-cut Label
Linerless
Receipt

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Maximum Roll Diameter:

2.20"

Maximum Label Width:

2.18"

Maximum Label Length:

32"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Capacity:

2100 mAh

Physical Characteristics

Form Factor:

Portable

Height:

7.2"

Width:

3.6"

Depth:

3"

Miscellaneous

Package Contents:

QL 220 Plus Mobile Label Printer
Lithium Ion Battery

Additional Information:

QuickLink module: Zebra Value Radio
Media sensors: Reflective and Transmissive
Media Handling: Direct Thermal/ Linered Platen
Clamshell design and center locking media loading
Rubber infused plastic over-mold design for tough conditions
Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
Regional Grouping Codes: Grouping "0": (US/ Canada/ /Australia/New Zealand/ Mexico/ Nicaragua)

Platform Supported:

PC

Certifications & Standards:

FCC Class B
CE Class B
CSA
CB
NOM
C-Tick

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108
