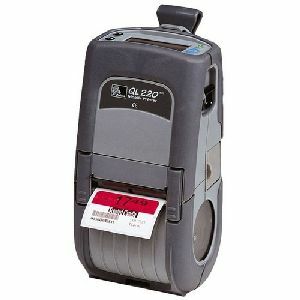

Zebra Q2B-LUMA0010-00 Portable Barcode Printer

The Zebra Q2B-LUMA0010-00 Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra QL220 - Direct thermal, 2 inch Printhead, 2MB SRAM, 2MB Flash, LCD, 802.11b Symbol CF-NA, Linered Platen and Shoulder Strap. Power supply (Part# CC16614-G4) not included, see accessories.
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Wi-Fi
Print Resolution
203 dpi
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Ideal to be used in field service, and in any application that has a need to print on the go
  • Print your documents from the comfort of your couch with Wireless LAN connectivity enabled
  • 2.18" maximum label width for dependable, desired results
  • 32" maximum label length for your convenience and feasible usability
  • Supports label media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal/Thermal Transfer Printer with mobile application/usage provides reliable, feasible printing solution
Read More

Need a different version? See all Zebra QL220 Portable Barcode Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra Q2B-LUMA0010-00 Portable Barcode Printer
Zebra Q2B-LUMA0010-00 Portable Barcode Printer Zebra Q2B-LUMA0010-00 Portable Barcode Printer Zebra Q2B-LUMA0010-00 Portable Barcode Printer
Zebra Q2B-LUMA0010-00 Portable Barcode Printer
Zebra Q2B-LUMA0010-00 Portable Barcode Printer

Full specifications (PDF)

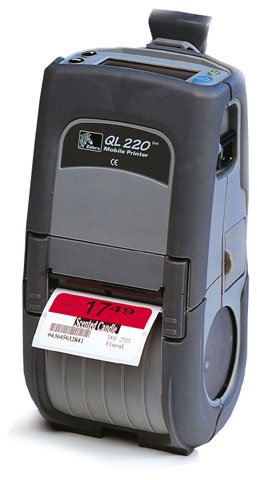

Zebra QL220 Portable Barcode Printer Model Overview
The QL220 direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.
Zebra Q2B-LUMA0010-00 Portable Barcode Printer Overview

The QL 220 direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring, it provides user-friendly options to keep your business moving.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
1.89"
Barcode Symbology Supported:
  • Codabar
  • Code 128
  • Code 93
  • Code 39
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • Interleaved 2 of 5
  • POSTNET
  • Plessey
  • UCC/EAN 128
  • FIM
  • UPC-A with 2 or 5 Digit Extension
  • PDF-417
  • Maxi Code
  • EAN/JAN-8
  • EAN/JAN-13
  • UPC-A
  • UPC-E
Application/Usage:
Mobile
Features:
  • LCD Display
  • Shoulder Strap
Memory
Standard Memory:
2 MB
Flash Memory:
2 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Wireless LAN:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Continuous Form
  • Receipt
  • Linerless
  • Roll Fed
  • Die-cut Label
Media Size:
2.16" x Roll Paper
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.20"
Maximum Label Width:
2.18"
Maximum Label Length:
32"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
CCPL
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
2100000 mAh
Physical Characteristics
Form Factor:
Portable
Height:
7.2"
Width:
3.6"
Depth:
3"
Miscellaneous
Package Contents:
  • QL 220 Mobile Label Printer
  • Lithium ion battery
Additional Information:
  • QuickLink module: 802.11b (Symbol CF) North America
  • Ancillary Items: Cleaning Pen
  • Reflective & Transmissive sensors
  • Media Handling: Direct Thermal/ Linered Platen
  • Character set: US/Canadian English/Latin 1& 5 (Including Turkish)
Platform Supported:
PC
Certifications & Standards:
  • CSA
  • CB
  • NOM
  • C-Tick
  • CE Class B
  • FCC Class B
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra Q2B-LUMA0010-00 Portable Barcode Printer is also known as ZEB-Q2B-LUMA0010-00 or Q2B-LUMA0010-00.
