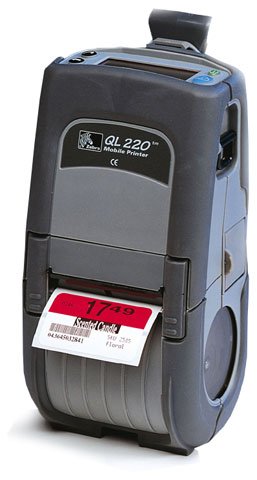

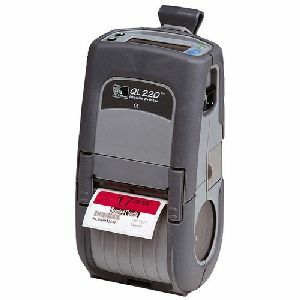

Zebra Q2A-MU1AV000-00 Portable Barcode Printer

Part Number: Q2A-MU1AV000-00
Model: QL220
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  Direct thermal, linered platen, 203 dpi, 1.89" print width, 3 ips Print Speed, 1MB SRAM, 1MB Flash, Serial Interface, Membrane LED, Var. Includes battery, belt clip & user's manual. Order battery charger & cables separately. See accessories. Power supply (Part# CC16614-G4) not included, see accessories.
Explore all Zebra QL220 Portable Barcode Printers
Add to Quote
Zebra Q2A-MU1AV000-00 Portable Barcode Printer
Zebra Q2A-MU1AV000-00 Portable Barcode Printer
Zebra Q2A-MU1AV000-00 Portable Barcode Printer
Zebra Q2A-MU1AV000-00 Portable Barcode Printer Zebra Q2A-MU1AV000-00 Portable Barcode Printer

Full specifications (PDF)

Zebra QL220 Portable Barcode Printer Model Overview

The QL220 direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.
Zebra Q2A-MU1AV000-00 Portable Barcode Printer Overview

The lightweight QL 220 Label Printer is the smallest network addressable printer in the AIDC Industry. This direct thermal QL 220 Label Printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring, and cable ready, it provides user-friendly options to keep your business moving.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
1.89"
Barcode Symbology Supported:
  • Codabar
  • Code 128
  • Code 93
  • Code 39
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • Interleaved 2 of 5
  • POSTNET
  • Plessey
  • UCC/EAN 128
  • FIM
  • UPC-A with 2 or 5 Digit Extension
  • PDF-417
  • Maxi Code
  • EAN/JAN-8
  • EAN/JAN-13
  • UPC-A
  • UPC-E
Application/Usage:
Mobile
Features:
Belt Clip
Memory
Standard Memory:
1 MB
Flash Memory:
1 MB
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LED
Media Types & Handling
Media Type:
  • Label
  • Continuous Form
  • Receipt
  • Linerless
  • Roll Fed
  • Die-cut Label
Media Size:
2.16" x Roll Paper
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
6.50 mil
Maximum Roll Diameter:
2.20"
Maximum Label Width:
2.18"
Maximum Label Length:
32"
Label Core Size:
1.38"
Fonts & Emulation
Language Emulation:
  • CCPL
  • ZPL II
  • CPCL
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
2100000 mAh
Physical Characteristics
Form Factor:
Portable
Height:
7.2"
Width:
3.6"
Depth:
3"
Miscellaneous
Package Contents:
  • QL 220 Mobile Label Printer
  • Lithium ion battery
Additional Information:
  • Cable Ready
  • Linered Pattern
  • Reflective & Transmissive sensors
  • VAR (adds UMAN/accessories CD)
  • Character Set: US/Canadian English/Latin 1& 5 (Including Turkish)
Platform Supported:
PC
Certifications & Standards:
  • CSA
  • CB
  • NOM
  • C-Tick
  • CE Class B
  • FCC Class B
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
