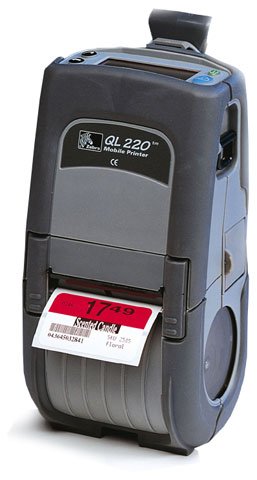

Zebra Q2A-LU1AVS00-00 Portable Barcode Printer

The Zebra Q2A-LU1AVS00-00 Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra QL220 - Direct thermal, linered platen, 203 dpi, 2" print width, 1MB SRAM, 1MB Flash, LCD, No QuickLink Module, VAR, Symbol PIM Compatible. Includes battery, belt clip & user's manual. Order battery charger & cables separately. See accessories. Power supply (Part# CC16614-G4) not included, see accessories.

Printer Type

Mobile

Printing Technology

Direct Thermal

Interface Options

Serial (RS-232)

Print Resolution

203 dpi

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
203 maximum print resolution (dpi) for your convenience and easy usage
The printer is capable of printing sharp and detailed monochrome documents quickly
Delivers high-speed, hassle-free labeling solution for your business needs
Bring convenience, value, and feature to any mobile environment
2.18" maximum label width to easily accommodate your needs with added productivity
32" maximum label length to easily accommodate your needs with added productivity
Direct Thermal/Thermal Transfer Printer with mobile application/usage provides dependable printing solution with added productivity
Belt Clip feature for maximum efficiency and convenience
Comes with 1 MB standard memory for timely printing with added reliability

Need a different version? See all Zebra QL220 Portable Barcode Printers

Discontinued Need Assistance?

Add to Quote

Zebra Q2A-LU1AVS00-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra QL220 Portable Barcode Printer Model Overview

The QL220 direct thermal mobile printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring and an optional LCD, it provides user-friendly options to keep your business moving. All units ship with one user's manual.

Zebra Q2A-LU1AVS00-00 Portable Barcode Printer Overview

The lightweight QL 220 Label Printer is the smallest network addressable printer in the AIDC Industry. This direct thermal QL 220 Label Printer has been designed with the most advanced technology in rubberized over-molding to maintain both rugged construction and minimal weight. With center-loading media, smart battery monitoring, and cable ready, it provides user-friendly options to keep your business moving.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

1.89"

Barcode Symbology Supported:

Codabar
Code 128
Code 93
Code 39
EAN-8 With 2 or 5 Digit Extension
EAN-13 With 2 or 5 Digit Extension
Interleaved 2 of 5
POSTNET
Plessey
UCC/EAN 128
FIM
UPC-A with 2 or 5 Digit Extension
UPC-E with 2 or 5 Digit Extension
PDF-417
Maxi Code
MSI

Application/Usage:

Mobile

Features:

Belt Clip
LCD Display

Memory

Standard Memory:

1 MB

Memory Technology:

SRAM

Flash Memory:

1 MB

Media Types & Handling

Media Type:

Label
Roll Fed
Die-cut Label
Receipt
Linerless
Black Bar
Continuous Form

Media Size:

Custom Size - 2.15" x 32"
2.16"

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

6.50 mil

Maximum Roll Diameter:

2.20"

Maximum Label Width:

2.18"

Maximum Label Length:

32"

Label Core Size:

1.38"

Fonts & Emulation

Language Emulation:

CCPL

Battery Information

Battery Included:

Yes

Physical Characteristics

Form Factor:

Portable

Height:

7.2"

Width:

3.6"

Depth:

Miscellaneous

Package Contents:

QL 220 Mobile Label Printer
Lithium ion battery

Platform Supported:

Certifications & Standards:

CSA
CB
NOM
C-Tick
CE Class B
FCC Class B

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra Q2A-LU1AVS00-00 Portable Barcode Printer is also known as ZEB-Q2ALU1AVS0000
