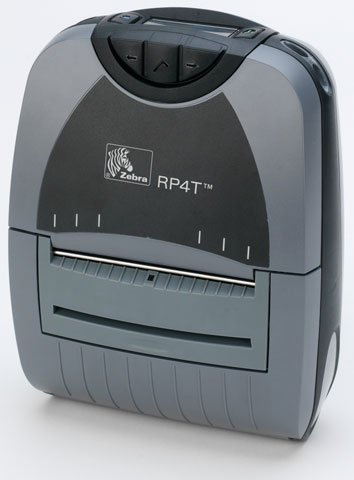

Zebra P4D-UU100001-00 RFID Printer

Zebra RP4T - RFID, 4", 203 dpi, Thermal transfer, 32 bit processor, 8MB/16MB Memory, Serial and USB interfaces
Offers a lightweight, easy-to-carry, mobile RFID solution

Zebra brings you the world's first mobile thermal transfer printer with RFID printing/encoding capability. With the RP4T, you can print lasting barcode labels, UHF smart labels, and documents up to 4" wide. With the latest Bluetooth 2.0 or 802.11b/g wireless connectivity, battery monitoring, large LCD, center-loading media and large memory, the RP4T boasts an array of features that easily handle your printing needs while being intuitive and user-friendly. Don't let the sleek appearance fool you: the advanced, ergonomic design stands up to the most demanding work environments. The RP4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and health care.

Technical Information

  • Maximum Mono Print Speed: 1.50 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4"
  • Recommended Use: RFID Label Print
  • Features:
    • Shoulder Strap

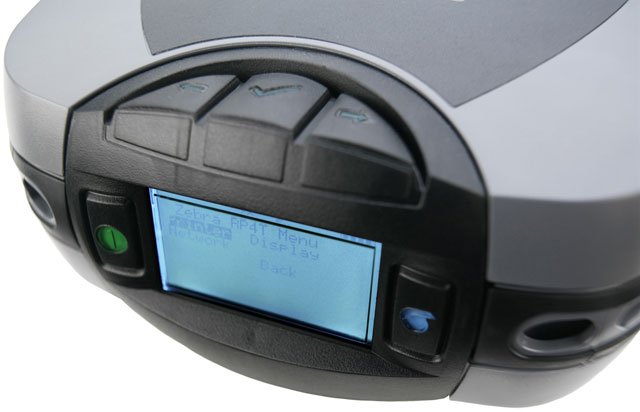

    • LCD Display
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • UCC/EAN 128
    • Code 128
    • Codabar
    • Interleaved 2 of 5
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • PDF-417
    • Maxi Code
    • QR Code
    • RSS
    • GS1 DataBar
    • Aztec Code
    • Data Matrix

General Information

  • Product Type: Thermal Transfer Printer
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: RP4T
  • Product Name: RP4T Mobile RFID Label Printer

Physical Characteristics

  • Height: 8.7"
  • Width: 6.5"
  • Depth: 3.4"
  • Form Factor: Portable

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.12"
  • Media Type:
    • Fanfold
    • Receipt
    • Tag
    • Tag Stock
    • Black Mark
    • Gap
    • Continuous Form
    • Continuous Receipt
    • Perforated Label
  • Media Thickness: 8.50 mil
  • Label Core Size: 1.37"
  • Maximum Roll Diameter: 2.60"

Fonts & Emulation

  • Language Emulation:
    • CPCL
    • EPL
    • XML
    • ZPL
    • EPL2

Other

  • Platform Supported: PC
  • Additional Information:
    • 32-Bit Processor
    • RFID passive EPC Class 1 Gen 2 protocol

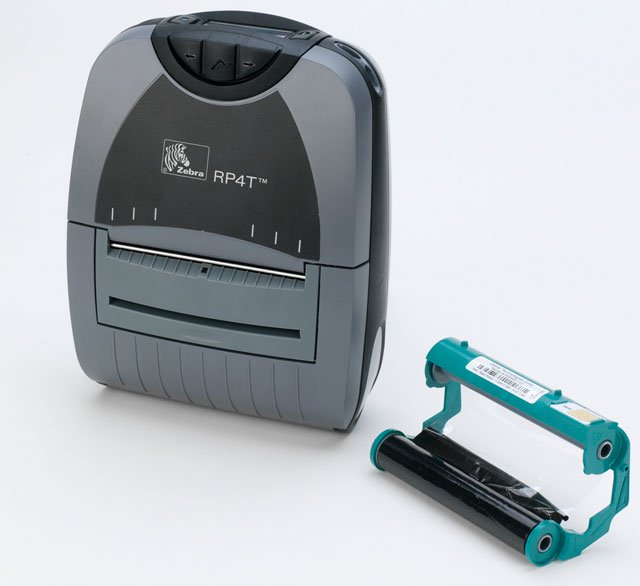

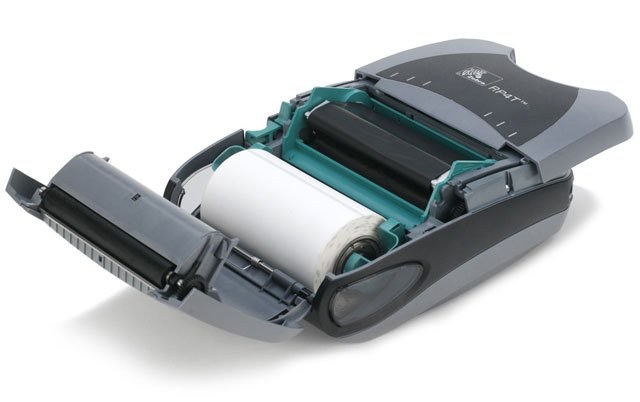

    • Open access design for easy media and ribbon loading
    • Resident scalable fonts

Memory

  • Standard Memory: 16 MB
  • Memory Technology: SRAM
  • Flash Memory: 8 MB

Warranty

  • Limited Warranty: 1 Year

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model RP4T
Interface RS-232 Serial, USB
Maximum Print Width 4.09" max width
Frequency Range UHF
Print Resolution 203 dpi
Form Factor Mobile
