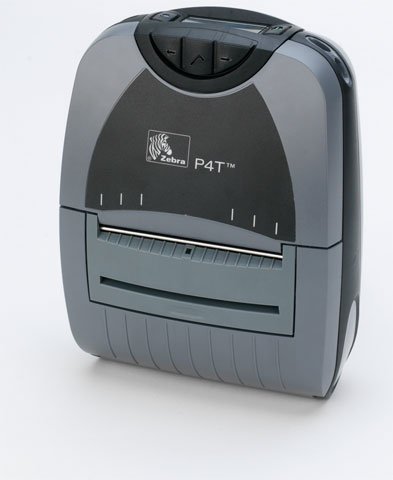

Zebra P4D-0UG10000-00 Portable Barcode Printer

Zebra P4T Portable Barcode Printer Model Overview

Zebra brings you the world's first mobile thermal transfer printer with optional RFID upgradability. With the Zebra P4T, you can print long-life barcode labels and documents up to 4" wide that withstand harsh and outdoor enivronments. With the latest Bluetooth 2.0 or 802.11b/g wireless connectivity, battery monitoring, large LCD, center-loading media and large memory, the P4T boasts an array of features that easily handle your printing needs while being intuitive and user-friendly. Don't let the sleek appearance fool you: the advanced, ergonomic design stands up to the most demanding work environments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and healthcare.

Zebra P4D-0UG10000-00 Portable Barcode Printer Overview

Zebra brings you the world's first mobile thermal transfer printer with optional RFID upgradability. With the P4T, you can print long-life bar code labels and documents up to 4" wide that withstand harsh and outdoor enivronments. With the latest Bluetooth 2.0 or 802.11b/g wireless connectivity, battery monitoring, large LCD, center-loading media and large memory, the P4T boasts an array of features that easily handle your printing needs while being intuitive and user-friendly. Don't let the sleek appearance fool you: the advanced, ergonomic design stands up to the most demanding work environments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and field service.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

1.50 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
Codabar
Interleaved 2 of 5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 With 2 or 5 Digit Extension
EAN-13 With 2 or 5 Digit Extension
PDF-417
Maxi Code
QR Code
RSS
GS1 DataBar
Aztec Code
Data Matrix

Peel Facility:

Yes

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11g

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Fanfold
Receipt
Tag
Tag Stock
Black Bar
Gap
Continuous Label
Continuous Receipt

Media Sensor:

Transmissive Media Sensor

Media Thickness:

8.50 mil

Maximum Roll Diameter:

2.60"

Maximum Label Width:

4.12"

Label Core Size:

0.75"

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL
XML

Power Description

Power Source:

Battery

Input Voltage:

7.4 V DC

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Built-in:

Yes

Battery Included:

Yes

Battery Rechargeable:

Yes

Physical Characteristics

Form Factor:

Portable

Height:

8.7"

Width:

6.5"

Depth:

3.4"

Weight (Approximate):

2.90 lb

Miscellaneous

Package Contents:

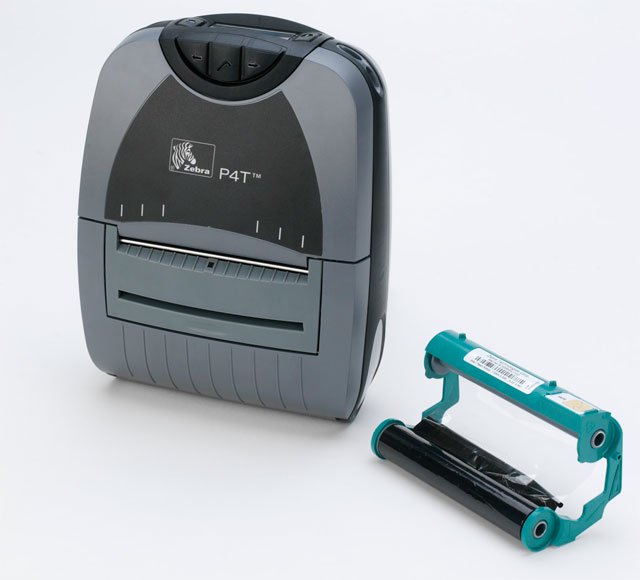

P4T Label Printer
Battery
Shoulder Strap
Ribbon Cartridge

Platform Supported:

PC

Certifications & Standards:

FCC Part 15
EN55022 Class B limits
FCC
Industry Canada
IEC 60950
NRTL marking for US & Canada
EMC
LVD
R&TTE Directives

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0797212340528, 0984537761194

UPC: 797212340528, 984537761194

EAN: 0797212340528, 0984537761194

UNSPSC: 43212108
