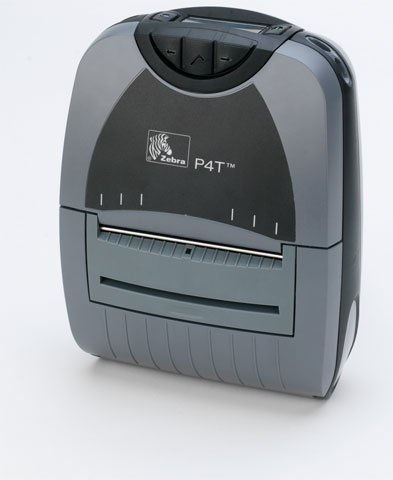

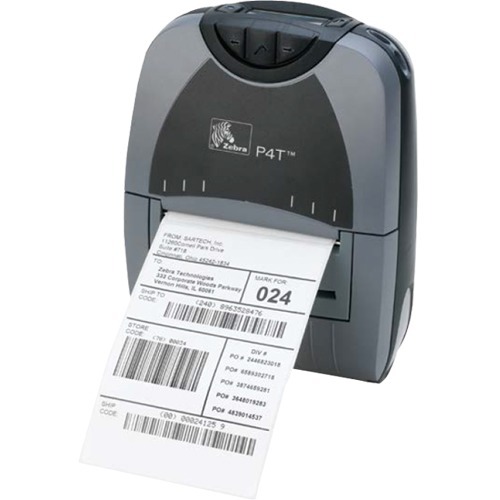

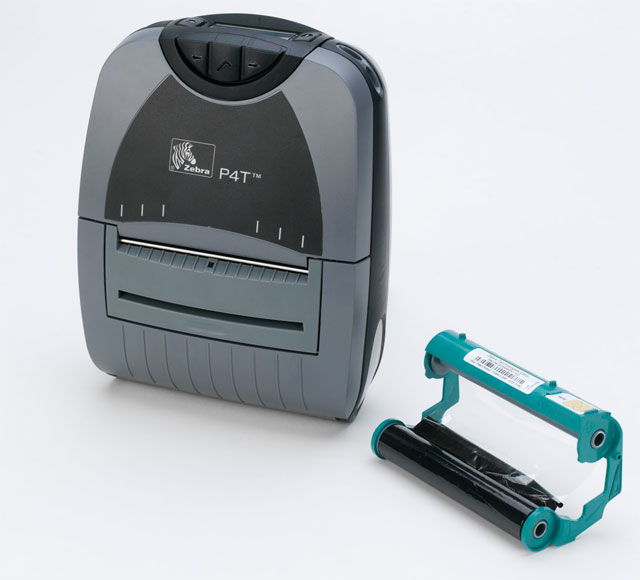

Zebra P4D-0UG0E000-00 Portable Barcode Printer

The Zebra P4D-0UG0E000-00 Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra P4T - 4 IN, USB, SERIAL, 8MB/16MB, CPCL/EPL/ZPL/XML, ZEBRA PERFORMANCE RADIO 802.11 B/G,EU/EFTA/INDIA/RUSSIA/TURKEY,

Printer Type

Mobile

Print Resolution

203 dpi

A better-quality solution to print permanent-use documents
203 maximum print resolution (dpi) for your convenience and easy usage
Produce high-quality documents with this monochrome printer to increase your productivity
Enjoy the optimal performance in today's on-demand labeling applications
Carry your printer with you anywhere with its lightweight design
Bye bye Wires, Hello Wi-Fi! Cut down the potential hazards of tripping and electrical fires by reducing the number of long cables. Print wirelessly even from your mobile devices.
4.12" maximum label width for dependable, desired results
Supports fanfold media type for maximum feasibility and better accommodation of your requirements
Comes with 16 MB standard memory for timely printing with added reliability

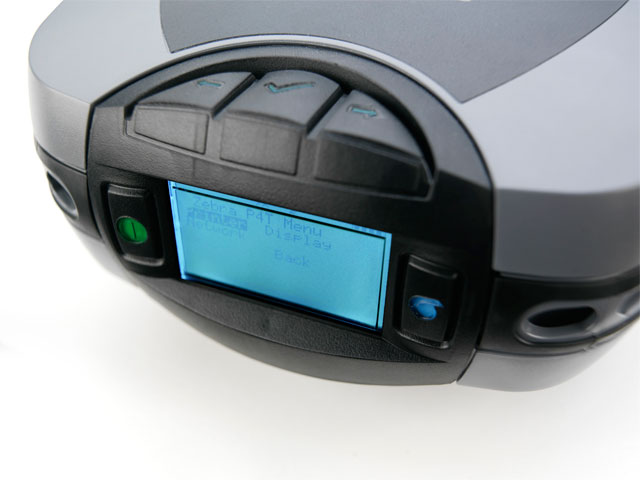

LCD display is power-efficient with minimal heat production to ensure a prolonged, convenient usage

Need a different version? See all Zebra P4T Portable Barcode Printers

Discontinued Need Assistance?

Add to Quote

Zebra P4D-0UG0E000-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra P4T Portable Barcode Printer Model Overview

Zebra brings you the world's first mobile thermal transfer printer with optional RFID upgradability. With the Zebra P4T, you can print long-life barcode labels and documents up to 4" wide that withstand harsh and outdoor enivronments. With the latest Bluetooth 2.0 or 802.11b/g wireless connectivity, battery monitoring, large LCD, center-loading media and large memory, the P4T boasts an array of features that easily handle your printing needs while being intuitive and user-friendly. Don't let the sleek appearance fool you: the advanced, ergonomic design stands up to the most demanding work environments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and healthcare.

Zebra P4D-0UG0E000-00 Portable Barcode Printer Overview

Zebra brings you the world's first mobile thermal transfer printer with optional RFID upgradability. With the P4T, you can print long-life bar code labels and documents up to 4" wide that withstand harsh and outdoor enivronments. With the latest Bluetooth 2.0 or 802.11b/g wireless connectivity, battery monitoring, large LCD, center-loading media and large memory, the P4T boasts an array of features that easily handle your printing needs while being intuitive and user-friendly. Don't let the sleek appearance fool you: the advanced, ergonomic design stands up to the most demanding work environments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and field service.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

1.50 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
Codabar
Interleaved 2 of 5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 With 2 or 5 Digit Extension
EAN-13 With 2 and 5 Digit Extension
PDF-417
Maxi Code
QR Code
RSS
GS1 DataBar
Aztec Code
Data Matrix

Peel Facility:

Yes

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11g

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Fanfold
Receipt
Tag
Tag Stock
Black Bar
Gap
Continuous Label
Continuous Receipt
Synthetic Media

Media Sensor:

Transmissive Media Sensor

Media Thickness:

8.50 mil

Maximum Roll Diameter:

2.60"

Maximum Label Width:

4.12"

Label Core Size:

0.75"

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL

Power Description

Power Source:

Battery

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Built-in:

Yes

Battery Rechargeable:

Yes

Physical Characteristics

Form Factor:

Portable

Height:

8.7"

Width:

6.5"

Depth:

3.4"

Weight (Approximate):

2.90 lb

Miscellaneous

Platform Supported:

Item Numbers

GTIN: 5712505052273

EAN: 5712505052273

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra P4D-0UG0E000-00 Portable Barcode Printer is also known as ZEB-P4D0UG0E00000 or P4D-0UG0E000-00.
