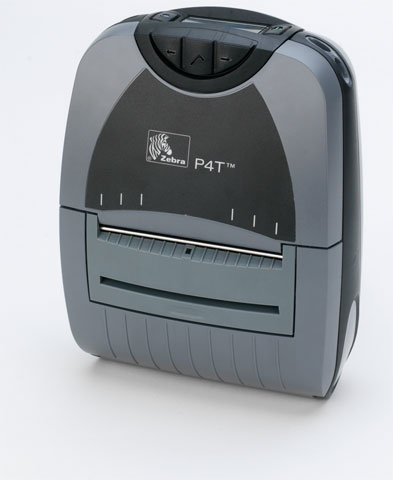

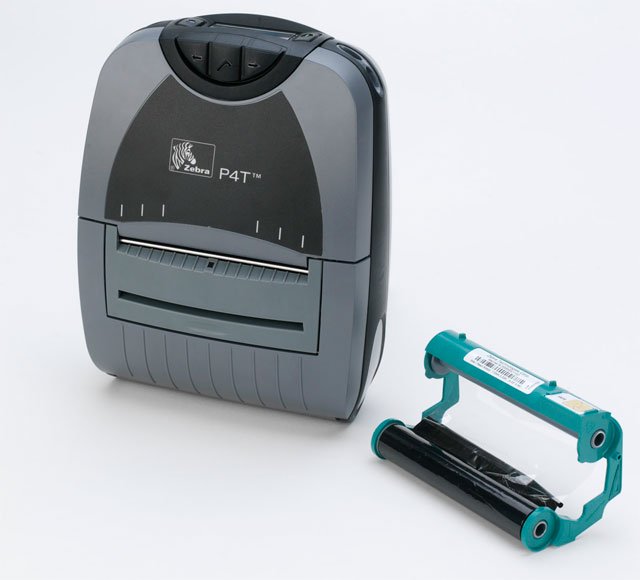

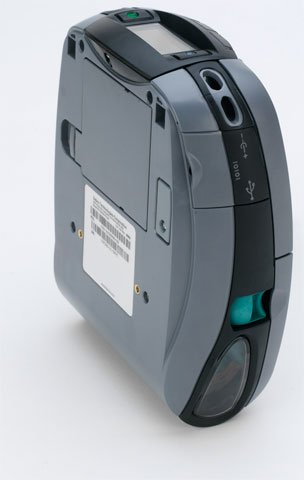

Zebra P4D-0UB10000-00 Portable Barcode Printer

The Zebra P4D-0UB10000-00 Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra P4T - Mobile Printer, 203DPI, 4", Thermal Transfer/Direct Thermal, 8MB/16MB Memory, Serial, USB, Bluetooth, External Media Slot included Shoulder Strap, Battery. Cables sold separately.

Printer Type

Mobile

Printing Technology

Thermal Transfer

Interface Options

Bluetooth, USB

Print Resolution

203 dpi

Max Print Width

4 inch

Thermal Transfer Printer provides high-quality label/receipt printing with maximum dependability
203 maximum print resolution (dpi) for your convenience and easy usage
The printer is capable of printing sharp and detailed monochrome documents quickly
Delivers high-speed, hassle-free labeling solution for your business needs
Bring convenience, value, and feature to any mobile environment
4.12" maximum label width to easily accommodate your needs with added productivity
Supports fanfold media type for better reliance and maximum usability
Shoulder Strap feature for maximum productivity with added dependability
Comes with 16 MB standard memory to make you productive with the thermal transfer printer?s smooth performance

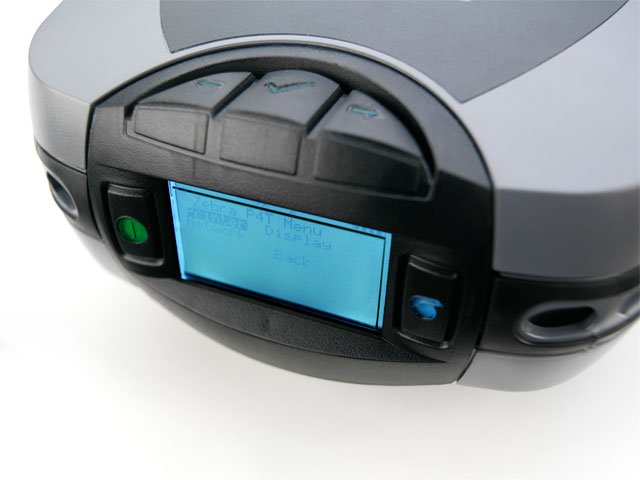

LCD display is long-lasting with reduced screen burning to ensure maximum efficiency

Need a different version? See all Zebra P4T Portable Barcode Printers

Discontinued Need Assistance?

Add to Quote

Zebra P4D-0UB10000-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra P4T Portable Barcode Printer Model Overview

Zebra brings you the world's first mobile thermal transfer printer with optional RFID upgradability. With the Zebra P4T, you can print long-life barcode labels and documents up to 4" wide that withstand harsh and outdoor enivronments. With the latest Bluetooth 2.0 or 802.11b/g wireless connectivity, battery monitoring, large LCD, center-loading media and large memory, the P4T boasts an array of features that easily handle your printing needs while being intuitive and user-friendly. Don't let the sleek appearance fool you: the advanced, ergonomic design stands up to the most demanding work environments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and healthcare.

Zebra P4D-0UB10000-00 Portable Barcode Printer Overview

Zebra brings you the world's first mobile thermal transfer printer with optional RFID upgradability. With the P4T, you can print long-life bar code labels and documents up to 4" wide that withstand harsh and outdoor enivronments. With the latest Bluetooth 2.0 or 802.11b/g wireless connectivity, battery monitoring, large LCD, center-loading media and large memory, the P4T boasts an array of features that easily handle your printing needs while being intuitive and user-friendly. Don't let the sleek appearance fool you: the advanced, ergonomic design stands up to the most demanding work environments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and field service.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

1.50 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
Codabar
Interleaved 2 of 5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 With 2 or 5 Digit Extension
EAN-13 With 2 and 5 Digit Extension
PDF-417
Maxi Code
GS1 DataBar
QR Code
RSS
Aztec Code
TLC 39

Peel Facility:

Yes

Features:

Shoulder Strap

Memory

Standard Memory:

16 MB

Memory Technology:

SRAM

Flash Memory:

8 MB

Interfaces/Ports

Serial Port:

Yes

USB:

Yes

Network & Communication

Bluetooth:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Fanfold
Receipt
Tag
Tag Stock
Black Bar
Gap
Continuous Label
Continuous Receipt

Media Thickness:

8.50 mil

Maximum Roll Diameter:

2.60"

Maximum Label Width:

4.12"

Label Core Size:

0.75"

Fonts & Emulation

Language Emulation:

EPL
ZPL
XML
CPCL

Power Description

Power Source:

Battery

Input Voltage:

7.4 V DC

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Rechargeable:

Yes

Physical Characteristics

Form Factor:

Portable

Height:

8.6"

Width:

Depth:

Weight (Approximate):

2.90 lb

Miscellaneous

Package Contents:

P4T Label Printer
Battery
Shoulder Strap

Platform Supported:

Certifications & Standards:

FCC Part 15
EN55022 Class B limit
FCC
Industry Canada
IEC 60950
NRTL marking
EMC
LVD
R&TTE Directives

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0024606566654, 0635661946437, 0783555134108

UPC: 024606566654, 635661946437, 783555134108

EAN: 0024606566654, 0635661946437, 0783555134108

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra P4D-0UB10000-00 Portable Barcode Printer is also known as ZEB-P4D-0UB10000-00 or P4D-0UB10000-00.
