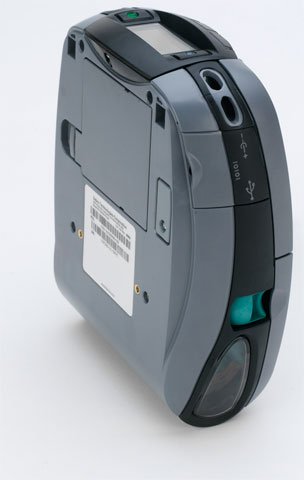

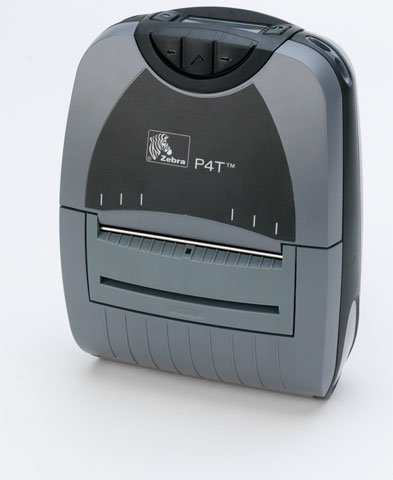

Zebra P4D-0UA00000-00 Portable Barcode Printer

The Zebra P4D-0UA00000-00 Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra P4T - Direct Thermal-Thermal transfer printing, 203 dpi, 4" width, 3"/sec print speed, 8MB/16MB, serial, USB, Bluetooth and 802.11 interfaces.

Printer Type

Mobile

Interface Options

Bluetooth, Serial (RS-232), USB, Wi-Fi

Print Resolution

203 dpi

Max Print Width

4 inch

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
203 maximum print resolution (dpi) for better reliance and added usability
Produce high-quality documents with this monochrome printer to increase your productivity
Enjoy the optimal performance in today's on-demand labeling applications
Ideal to be used in field service, and in any application that has a need to print on the go
4.12" maximum label width to easily accommodate your needs with added productivity
Supports fanfold media type for maximum feasibility and better accommodation of your requirements
Shoulder Strap feature for better reliance and usability
Comes with 16 MB standard memory for timely printing with added reliability

Need a different version? See all Zebra P4T Portable Barcode Printers

Discontinued Need Assistance?

Add to Quote

Zebra P4D-0UA00000-00 Portable Barcode Printer

Overview

Full specifications (PDF)

Zebra P4T Portable Barcode Printer Model Overview

Zebra brings you the world's first mobile thermal transfer printer with optional RFID upgradability. With the Zebra P4T, you can print long-life barcode labels and documents up to 4" wide that withstand harsh and outdoor enivronments. With the latest Bluetooth 2.0 or 802.11b/g wireless connectivity, battery monitoring, large LCD, center-loading media and large memory, the P4T boasts an array of features that easily handle your printing needs while being intuitive and user-friendly. Don't let the sleek appearance fool you: the advanced, ergonomic design stands up to the most demanding work environments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and healthcare.

Zebra P4D-0UA00000-00 Portable Barcode Printer Overview

P4T Mobile Printer can print long life bar code labels and documents that withstand harsh and outdoor enivronments. With the battery monitoring, large LCD, center loading media and large memory, the P4T boasts an array of features that easily handle your printing needs while being intuitive and user friendly. The advanced, ergonomic design stands up to the most demanding work environments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and field service.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

3 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

Barcode Symbology Supported:

Code 39
Code 93
UCC/EAN 128
Code 128
Codabar
Interleaved 2 of 5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-13 With 2 or 5 Digit Extension
EAN-8 With 2 or 5 Digit Extension
PDF-417
Maxi Code
QR Code
RSS
GS1 DataBar
Aztec Code
Data Matrix

Peel Facility:

Yes

Features:

Shoulder Strap

Memory

Standard Memory:

16 MB

Flash Memory:

8 MB

Interfaces/Ports

USB:

Yes

Network & Communication

Bluetooth:

Yes

Wireless LAN:

Yes

Media Types & Handling

Media Type:

Fanfold
Receipt
Tag
Tag Stock
Black Bar
Gap
Continuous Form
Continuous Receipt

Media Sensor:

Transmissive Media Sensor

Media Thickness:

8.50 mil

Maximum Roll Diameter:

2.60"

Maximum Label Width:

4.12"

Label Core Size:

0.75"

Fonts & Emulation

Language Emulation:

CPCL
EPL
ZPL
XML

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Capacity:

4200 mAh

Physical Characteristics

Form Factor:

Portable

Height:

8.6"

Width:

Depth:

Miscellaneous

Additional Information:

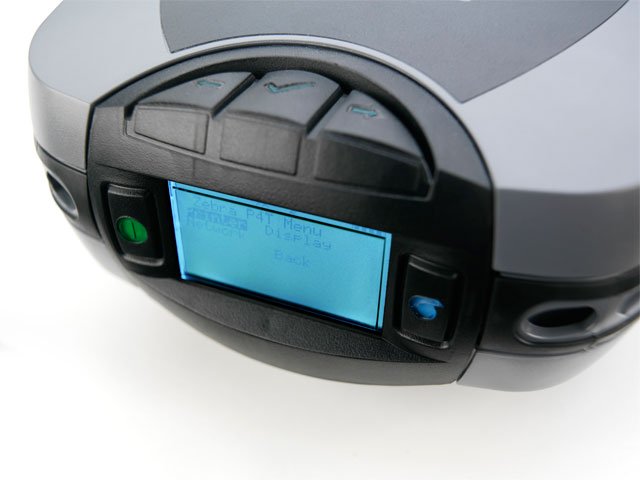

LCD
32 bit processor

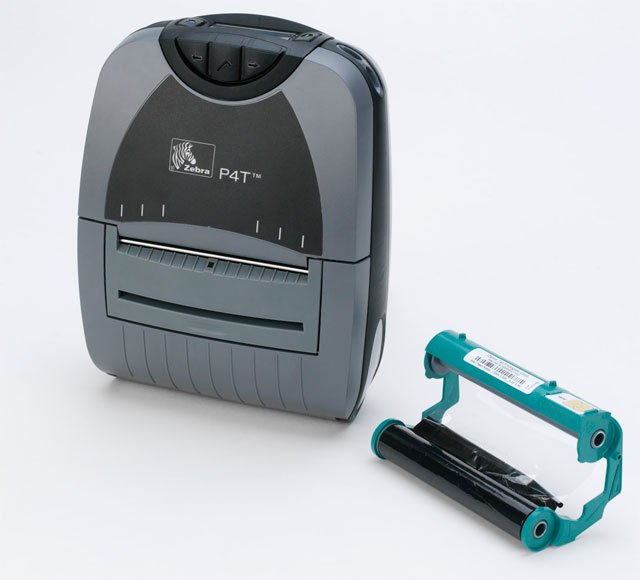

Smart battery and cartridge
Tolerance of multiple drops up to 5' to concrete
Open access design for easy media and ribbon loading
Internatioinal Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
Regional Grouping Codes: (US/Canada/Australia/New Zealand/ Mexico/Nicaragua)

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra P4D-0UA00000-00 Portable Barcode Printer is also known as ZEB-P4D-0UA00000-00 or P4D-0UA00000-00.
